Infineon Technologies EVAL-PFC5KIKWWR5SYS Evaluation Board

Infineon Technologies EVAL-PFC5KIKWWR5SYS Evaluation Board is a fast switching, analog-controlled two-channel interleaved 5KW PFC converter featuring the TRENCHSTOP™ 5 WR5 IKW40N65WR5 IGBT. The Board demonstrates the WR5 IGBT with high switching frequencies up to 60kHz in an interleaved PFC application. This enables many system benefits such as smaller PFC choke, overall system size, and BOM cost.

In addition, the Infineon EVAL-PFC5KIKWWR5SYS Evaluation Board offers a design based on the 1ED44175 low side gate driver and IDW60C65D1 Rapid1 power silicon diode.

Features

Interleaving operation
Adjustable switching frequency
Continuous conduction mode

Average current control
Cycle-by-cycle peak current limiting
Thermal shutdown feature for power semiconductors

Applications

Fast EV charging
Residential aircon – motor-, system control and monitoring

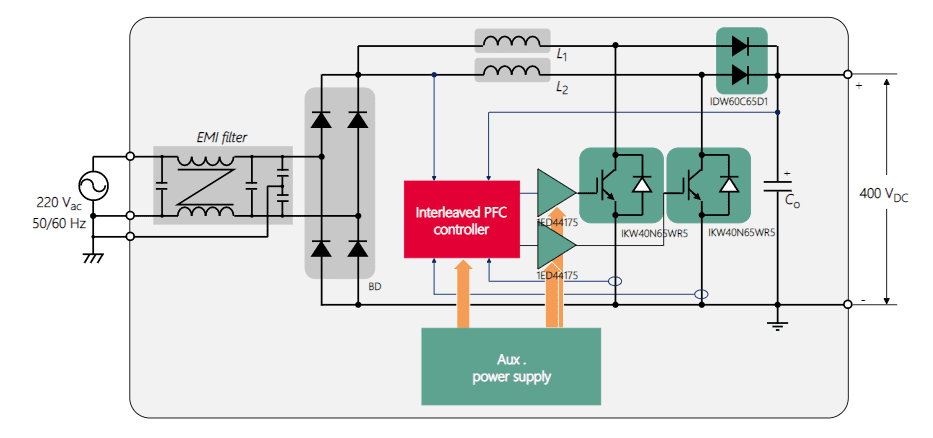

2-ch Interleaved PFC

Application Circuit Diagram - Infineon Technologies EVAL-PFC5KIKWWR5SYS Evaluation Board

Block diagram

Overview

Infineon Technologies EVAL-PFC5KIKWWR5SYS Evaluation Board
