Infineon Technologies EVAL-M7-LVMOS-INV Evaluation Power Board

Infineon Technologies EVAL-M7-LVMOS-INV Evaluation Power Board is designed to be driven by a control board compatible with the included M7 connector. The EVAL-M7-LVMOS-INV power board can handle up to 300W output power when the carrier frequency is 20kHz (The load is a 24V vacuum cleaner motor).

The Infineon EVAL-M7-LVMOS-INV Evaluation Power Board’s primary device is the IPD033N06N 60V OptiMOS™ power MOSFET. The IPD033N06N OptiMOS 60V is optimized for synchronous rectification in a switched-mode power supply (SMPS). The highly effective switching performance and lower R_DS(on) achieve lower losses when this device is used for low voltage motor control, solar microinverters, and fast switching DC-DC converters. The IPD033N06N has 40% lower R_DS(on) than alternative devices, reducing paralleling and increasing power density.

Features

60V OptiMOS power MOSFET used for the inverter section
Single-shunt or leg-shunt current feedback configuration (as alternatives)

5V and 15V output power supply on the board
PCB size is 80mm x 93mm, 2 layers, 1oz copper
RoHS-compliant

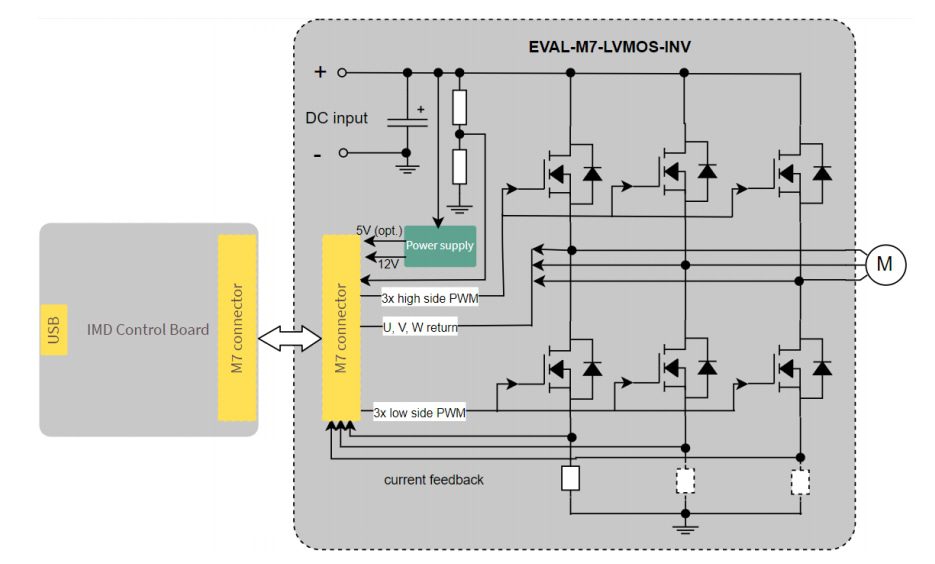

Block Diagram

Infineon Technologies EVAL-M7-LVMOS-INV Evaluation Power Board

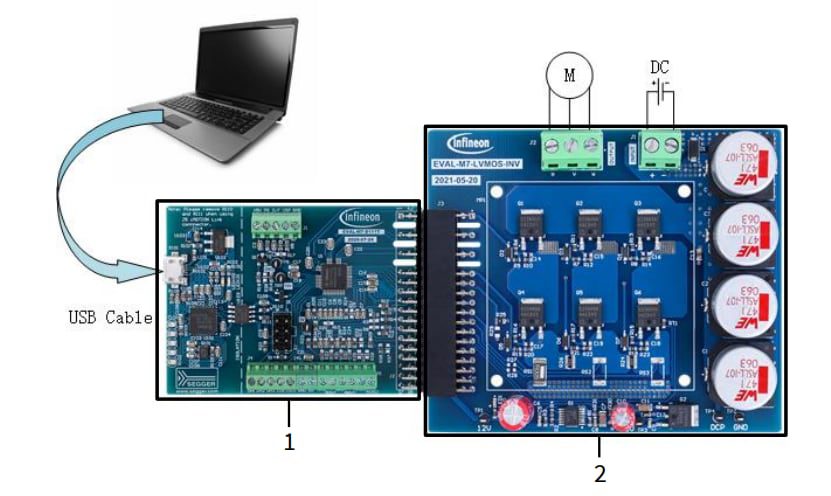

System Setup Example
