Infineon Technologies EVAL-M7-HVIGBT-INV iMOTION™ MADK Power Board

Infineon Technologies EVAL-M7-HVIGBT-INV iMOTION™ MADK Power Board is a power stage evaluation board for the iMOTION™ Modular Application Design Kit (MADK) platform. It implements a three-phase inverter based on the IKD04N60RC2 TRENCHSTOP™ RC-D2 IGBT (Insulated-Gate Bipolar Transistor).

Infineon Technologies EVAL-M7-HVIGBT-INV Power Board, used in conjunction with an iMOTION™ MADK Control Board, enables rapid prototyping of various motor control systems, scalable in power ratings and operating voltages.

The EVAL-M7-HVIGBT-INV Power Board is suitable for driving fans, pumps, and other small motors. The Power Board provides output power up to 200W without any heatsink at 8kHz carrier frequency.

Features

Demonstrates the IKD04N60RC2 TRENCHSTOP RC-D2 IGBT
Ready to use power stage to drive 3-phase motor
Reverse conducting IGBT with a 600V maximum voltage
220V nominal input voltage
Maximum 200W output power without cooling
Onboard EMI filter

Test pads with hooks to attach standard oscilloscope probes
Standard MADK M7 32pin interface connector
Cost-efficient inverter design
High electrical robustness
Very good EMI performance

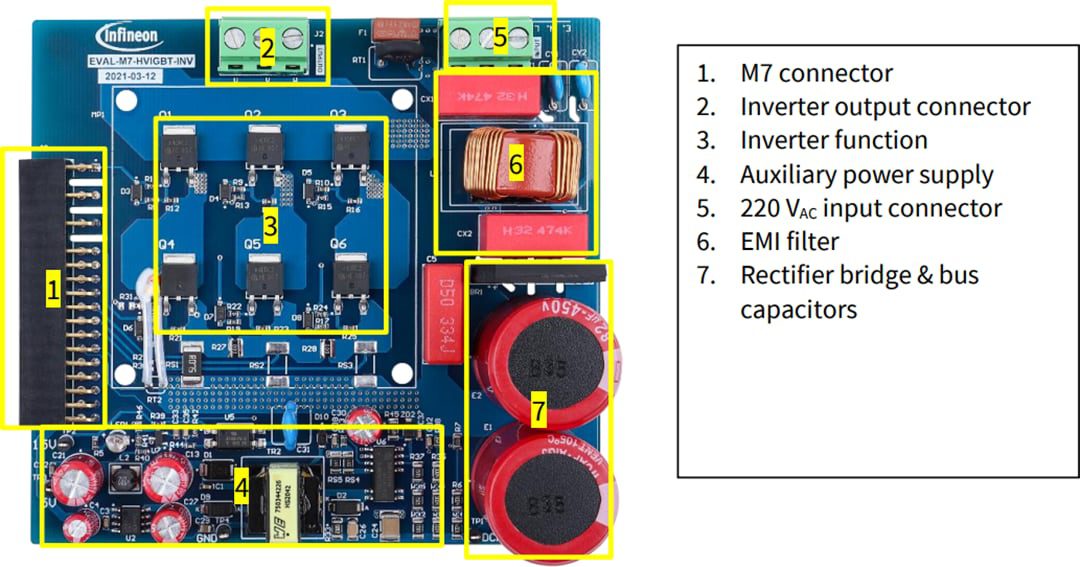

Board Layout

Infineon Technologies EVAL-M7-HVIGBT-INV iMOTION™ MADK Power Board

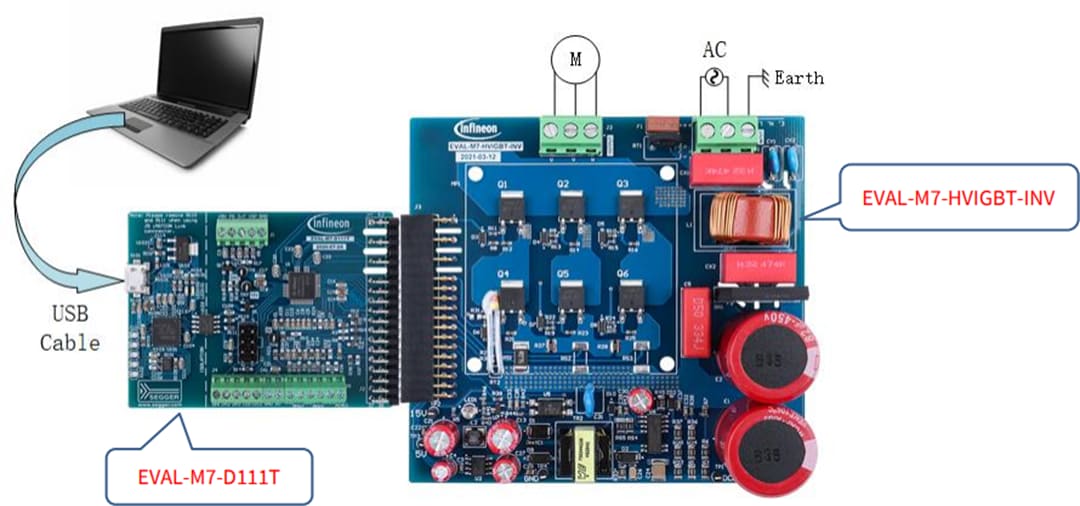

Setup Example

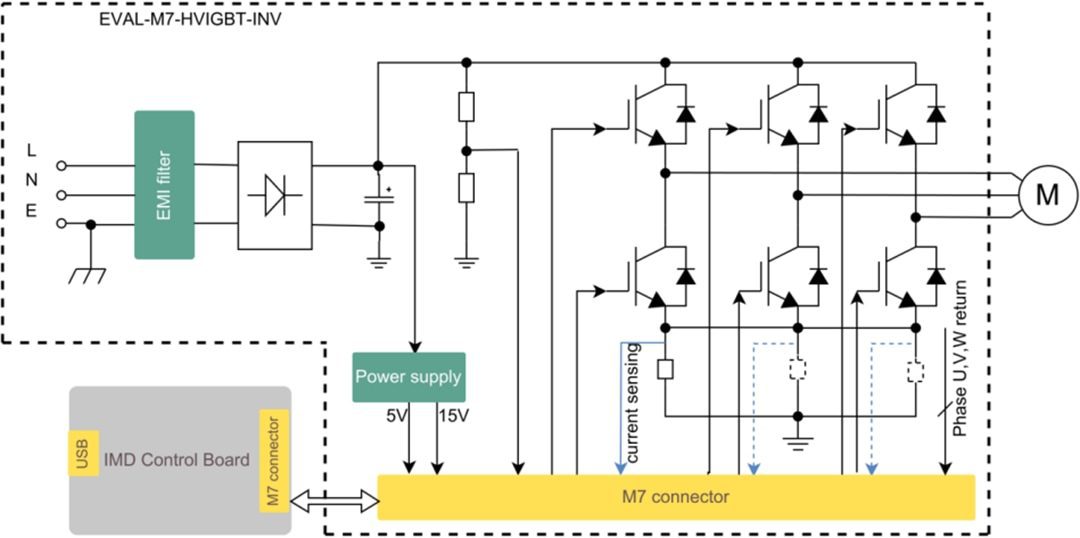

Block Diagram

Infineon Power and Sensing Selection Guide

Infineon Technologies EVAL-M7-HVIGBT-INV iMOTION™ MADK Power Board

Features

Board Layout

Setup Example

Block Diagram
