Infineon Technologies EVAL-M1-IM535 Evaluation Board

Infineon Technologies EVAL-M1-IM535 Evaluation Board is designed for applications with the IM535-U6D Intelligent Power Module (IPM). The board can be used to feature and demonstrate the CIPOS™ Mini IPM technology and Advanced Motion Control Engine (MCE 2.0) technology for permanent magnet motor drives over the full speed range. Infineon Technologies EVAL-M1-IM535 Evaluation Board can be used during design-in, for evaluation and measurement of characteristics, and proof of datasheet specifications.

Features

Power stage to drive 3-phase motor
600V blocking voltage IGBT
3KW output power
Standardized iMOTION™ MADK M1 platform interface
CIPOS Mini IPM (30A)
Evaluate IM535-U6D

Easy-to-start evaluation – shorter cycle time to the final product
UL certified package and temperature sensor
Smaller footprint to allow smaller PCB
High efficiency to save energy
ROHS compliant

Applications

Heating ventilation and air conditioning (HVAC)
Motor control and drives

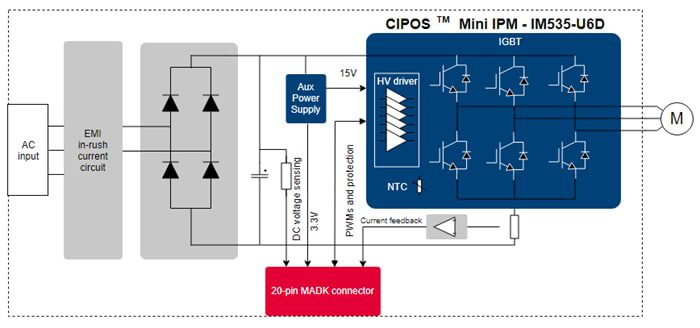

Diagram

Infineon Technologies EVAL-M1-IM535 Evaluation Board

Infineon Power and Sensing Selection Guide

Infineon Technologies EVAL-M1-IM535 Evaluation Board

Features

Applications

Diagram
