Infineon Technologies EVAL-M1-IM323 Evaluation Board

Infineon Technologies EVAL-M1-IM323 Evaluation Board was developed to support users in designing 3-phase motor drive applications with the IM323. The IM323 CIPOS™ tiny 3-phase inverter module delivers a high power density variable speed motor drive.

The Infineon EVAL-M1-IM323 is part of the iMOTION™ modular application design kit (MADK). When combined with a 20-pin interface connector control board, the EVAL-M1-IM323 demonstrates the Infineon CIPOS intelligent power module (IPM) and advanced motion control engine (MCE 2.0) technology for permanent magnet motor drives.

Features

165V_AC to 265V_AC Input voltage
Maximum 12A input current at 165V_AC
Maximum 1500W motor power output at 220V_AC
Inrush current limiter for circuit protection
On-board EMI filter and passes EMI standards EN55032
Auxiliary power supply with 15V, 3.3V

Overcurrent hardware protection and over-temperature protection
Sensing of DC-link voltage
Thermistor output
PCB size is 180mm x 140mm, two layers with 1oz. copper
RoHS compliant

Applications

Hood fans
Motor control and drives
Residential aircon -motor-, system control and monitoring

Residential heat pumps
Washer and dryer motor control – quieter systems

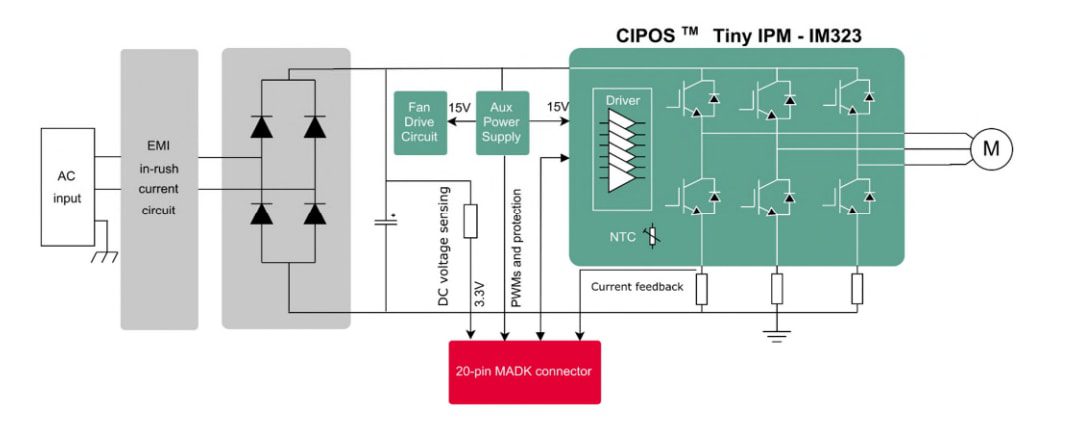

Block diagram

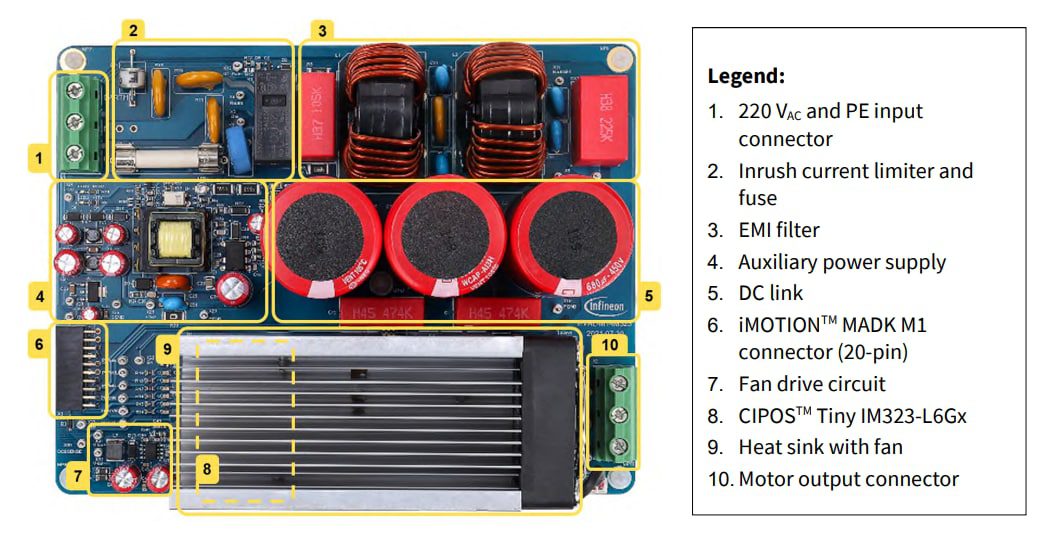

Top-Side Functional Groups
