Infineon Technologies EVAL-M1-2ED2106S Gate Driver Evaluation Board

Infineon Technologies EVAL-M1-2ED2106S Gate Driver Evaluation Board is a demonstration and development platform for the 2ED2106S06F 650V High and Low Side Gate Driver. Based on SOI (Silicon-on-Isolator) technology, the 2ED2106S06F features an integrated ultra-fast, low resistance bootstrap diode and a negative VS transient immunity of 100V.

The EVAL-M1-2ED2106S Evaluation Board features a complete power drive circuit, including gate driver ICs, IGBTs, a power connector, and a signal interface. The board is intended to drive a BLDC (Brushless Direct Current) motor by connecting to an external controller board such as the EVAL-M1-101T Evaluation Control Board.

Features

Three-phase inverter with single-shunt configuration, suitable for home appliance applications
DC voltage input that can come directly from the rectified DC voltage of single-phase 230V_AC input
650V SOI gate driver 2ED2106S06F with large negative VS tolerance
10A/650V rated IGBTs with Infineon TrenchStop™ IGBT6 technology
An auxiliary power supply is included in the board
Natural cooling with a heatsink installed on the bottom side

Specifications

310V to 380V input voltage
0.97A input current
1.6A phase current output
15kHz switching frequency
100mΩ current feedback

0℃ to +50℃ ambient operating temperature
95% maximum relative humidity
Dimensions: 126.0mm x 84.0mm x 1.6mm
Material FR-4, RoHS-compliant

Applications

Motor control and drives
Light electric vehicles (LEV)
Multicopters and drones
Power tools
Service robots
Home appliances

LED lighting
EV charging
Battery formation
Switched mode power supplies (SMPS)
Uninterruptible power supplies (UPS)

Board Layout

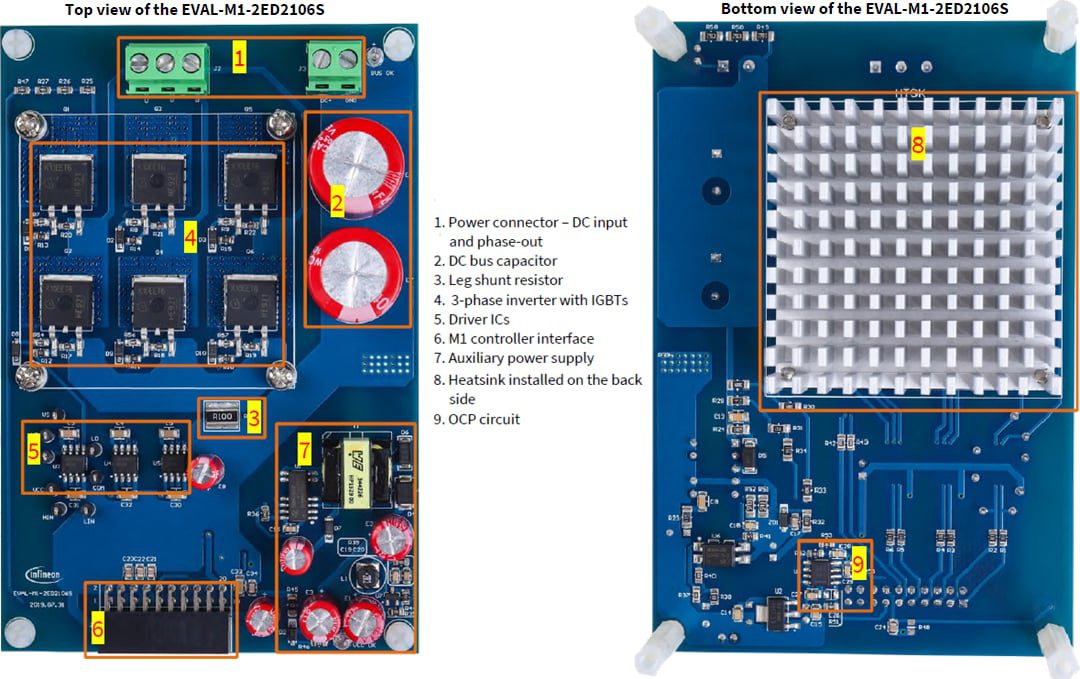

Infineon Technologies EVAL-M1-2ED2106S Gate Driver Evaluation Board

Block Diagrram

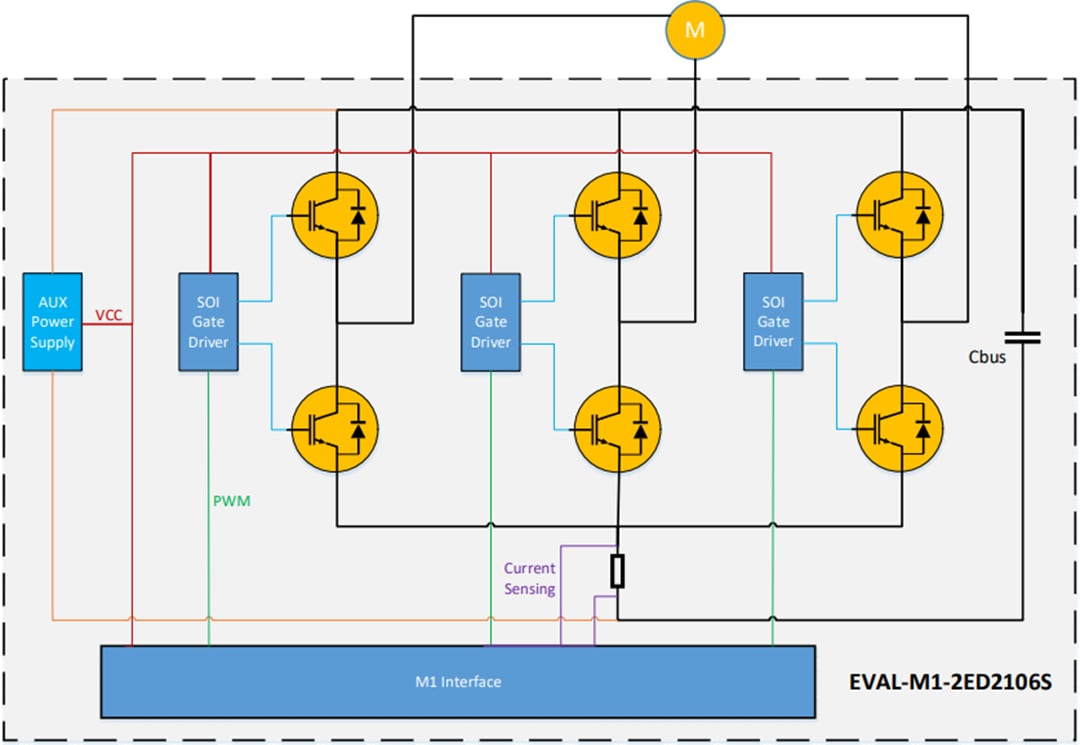

Block Diagram - Infineon Technologies EVAL-M1-2ED2106S Gate Driver Evaluation Board

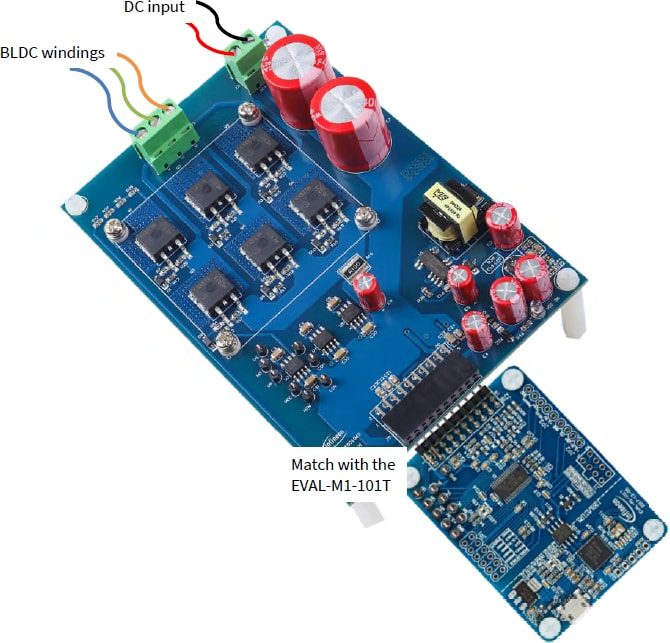

Setup Example
