Infineon Technologies EVAL-1ED3890Mx12M Evaluation Board

Infineon Technologies EVAL-1ED3890Mx12M Evaluation Board is designed to evaluate the functionalities and capabilities of 1ED3890MC12M or 1ED3890MU12M gate driver ICs. The 1ED38x0Mc12M family (X3 Digital) consists of galvanically isolated single-channel gate driver ICs in a small PG-DSO-16 package with a large creepage and clearance of 8mm. The gate driver ICs provide a typical peak output current of 3A, 6A, and 9A.

The Infineon EVAL-1ED3890Mx12M Evaluation Board comes with unpopulated TO-247 transistor footprints. The Board has a size of 85mm × 85mm × 15mm3 without any power switches assembled.

Features

40V absolute maximum output supply voltage
±9A typical sourcing and sinking gate current capability
Separate source and sink output for optimized gate driving
Adjustable clamp/clamp driver/ADC pin
I²C bus for parameter adjustment, state and fault feedback, ADC measurements and condition monitoring
Two precise V_CE(sat) detection (DESAT²) circuits with fault output, adjustable leading-edge blanking time an individually adjustable trigger voltages, filter times
Two-level turn-off (TLTO) with adjustable slopes, plateau time and plateau level
Selectable turn-off: hard turn-off and two-level turn-off
Adjustable soft turn-off after desaturation detection
Adjustable input filter
Hardware undervoltage lockout (UVLO) protection with hysteresis for input side
Adjustable hardware UVLO with hysteresis for IGBTs and MOSFETs on both VCC2 and VEE2 rails with active shutdown
Adjustable software UVLO for accurate supply voltage monitoring on both VCC2 and VEE2 rails
ADC measurement of internal parameters: supply voltages and internal temperature
Pin state reporting via I²C and fault
Internal counters for DESAT or UVLO events

Gate driver operation at high ambient temperature up to 125°C with over-temperature shutdown at 160°C
(±10°C)
Tight IC-to-IC propagation delay propagation delay matching (t_PDD,max = 30ns)
Undervoltage lockout protection with hysteresis for input and output side with active shutdown
High common-mode transient immunity CMTI = 200kV/μs
Small space-saving DSO-16 fine-pitch package with large creepage distance (>8 mm)
Gate driver safety certification:
- UL 1577 recognized (planned) with V_ISO,test = 6840V (rms) for 1s, V_ISO = 5700V (rms) for 60s
- IEC 60747-17/VDE 0884-11 approval (planned) with V_IORM = 1.767kV (peak, reinforced)

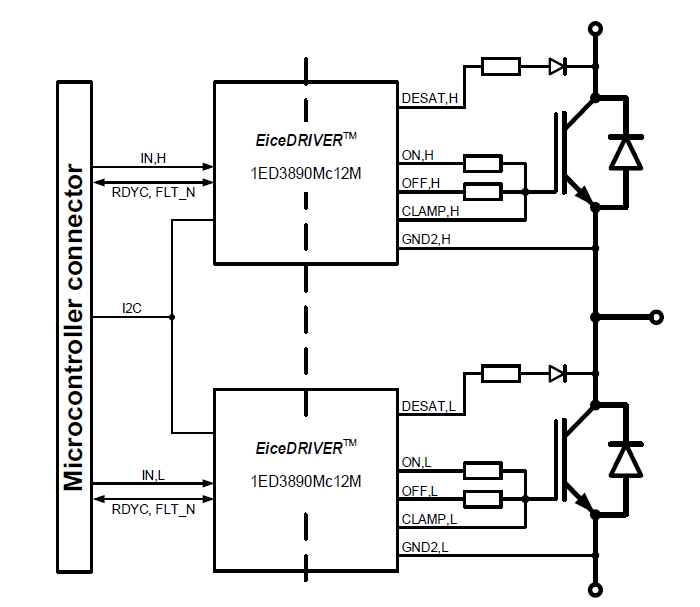

Block Diagram
