Infineon Technologies EiceDRIVER™ X3 Compact ICs

Infineon Technologies EiceDRIVER™ X3 Compact ICs are galvanically isolated single-channel gate driver ICs with separate outputs for IGBT, MOSFETs, and SiC MOSFETs in a DSO-8 150-mil package. EiceDRIVER™ X3 ICs provide a typical 6.5A output current with a -40°C to +150°C junction temperature range. Input logic pins operate on a wide 3V to 6.5V input voltage range using CMOS threshold levels to support 3.3V microcontrollers. Coreless transformer technology allows data transfer across the isolation barrier. The Infineon Technologies EiceDRIVER™ X3 Compact ICs feature input and output Undervoltage Lockout (UVLO) and active shutdown.

Features

Single-channel isolated gate driver
For use with 600V, 650V, 1200V, 1700V, and 2300V IGBTs and Si/SiC MOSFETs
Up to 6.5A typical peak output current
45ns propagation delay with 7ns part-to-part matching (skew)
35V absolute maximum output supply voltage
High common-mode transient immunity (CMTI) of >300kV/µs

Separate source and sink outputs with active shutdown and short circuit clamping
Galvanically isolated coreless transformer gate driver
3.3V and 5V input supply voltage
Suitable for operation at high ambient temperatures and in fast-switching applications
UL 1577 certification VISO = 3.0kV_RMS for 1 minute

Applications

EV charging
Energy storage systems
Solar inverters
Server and telecom switched mode power supplies (SMPS)

UPS-systems
AC and brushless DC motor drives
Commercial Air-Conditioning (CAC)
High voltage DC-DC converters and DC-AC inverters

Infineon Technologies EiceDRIVER™ X3 Compact ICs

Features

Applications

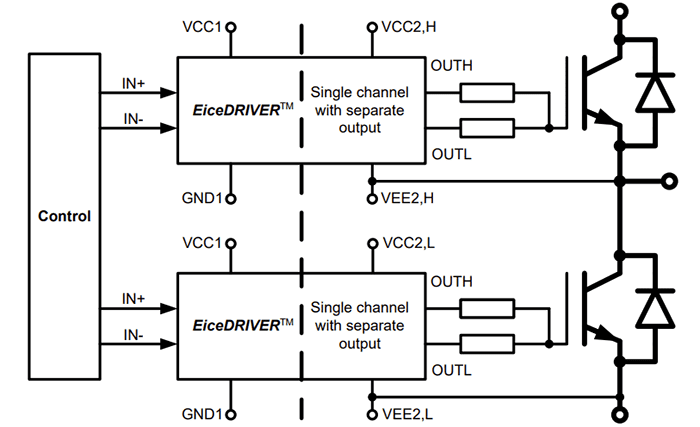

Typical Application

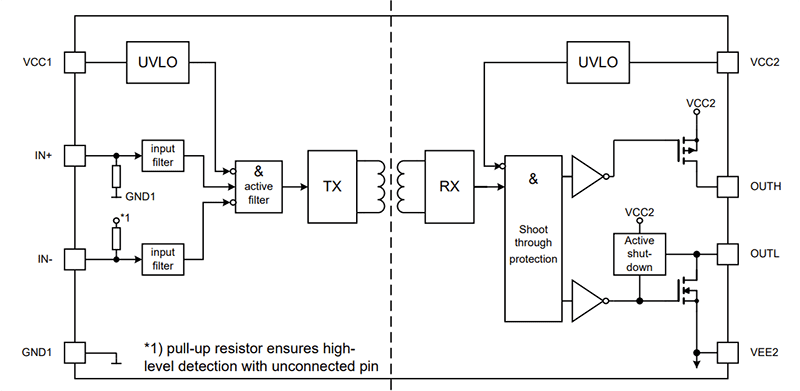

Block Diagram
