Infineon Technologies EiceDRIVER™ 1EDI303xAS Evaluation Board

Infineon Technologies EiceDRIVER™ 1EDI303xAS Evaluation Board is a versatile evaluation platform for the enhanced EiceDRIVER 1EDI303xAS gate drivers. These high-voltage IGBT/SiC gate drivers are for automotive motor drives with a power above 5kW. The evaluation board features a half-bridge configuration with low and high-voltage domains. The board offers options to mount a HybridPACK™ DSC IGBT module or a discrete PG-TO247-3 power device, such as the AIMW120R045M1 CoolSIC™ MOSFET.

Features

Single channel isolated IGBT/SiC driver
For IGBT/SiC power switches up to 1200V
11.5A peak current rail-to-rail output
DESAT protection
Active Miller clamp
ASC pin for PMSM motor drive application
Coreless transformer isolated driver

Basic insulation recognized under UL 1577
Integrated protection features
Developed according to ISO 26262
AEC-Q100 qualified
ISO 26262 Safety Element out of context for safety requirements up to ASIL B
Green product (RoHS compliant)

Applications

Main inverter
DC-DC
Onboard Charging (OBC)

Powertrain inverter for CAV (powertrain inverter for truck and agricultural vehicles)
Industrial drives

Infineon Technologies EiceDRIVER™ 1EDI303xAS Evaluation Board

Features

Applications

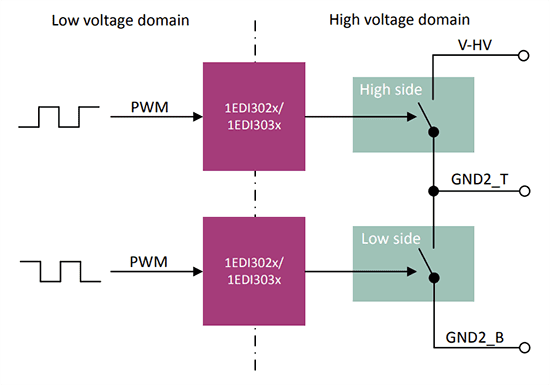

Board Topology
