Infineon Technologies DEMOBGT60LTR11AIP Demo Board

Infineon Technologies DEMOBGT60LTR11AIP Demo Board features BGT60LTR11AIP 60GHz radar MMIC autonomous radar sensor. This microwave motion sensor includes Antennas in Package (AIP) as well as integrated detectors for motion and direction of motion. The DEMOBGT60LTR11AIP board incorporates the BGT60LTR11AIP shield and the Infineon Radar Baseboard MCU7 to evaluate BGT60LTR11AIP MMIC. This demo board mall-sized radar solution is a compelling, smart, and cost-effective replacement for conventional passive infrared (PIR) sensors in low-power or battery-powered applications. The DEMOBGT60LTR11AIP demo board operates at a 3.3V to 5V supply voltage range. Typical applications include smart home security, room air conditioners, contactless switches, drones, smart appliances, and smart homes.

Kit Contents

BGT60LTR11AIP MMIC:
- 3.3mm x 6.7mm x 0.56mm package size
- Integrated detectors for motion and direction of motion
- Multiple modes of operation, including a completely autonomous mode
- Adjustable performance parameters such as detection sensitivity, hold time, and frequency of operation
BGT60LTR11AIP shield:
- 19.15mm x 20.20mm size
- Digital interface for configuration and data transfer to an MCU
- 2 LEDs illustrating the sensor outputs
- Radar MMIC is configured in SPI mode
- Requires microcontroller unit (e.g., Arm^® Cortex^®-M0)

Radar Baseboard MCU7:
- 64mm x 25.4mm size
- Can perform radar data processing or forward the sensor data to a USB interface or an Arduino MKR interface
- Hi-Speed USB 2.0 interface
- Operates with Radar Fusion GUI

Applications

Automated door openers
Contactless switches
Displays such as TVs
Monitors
Laptops or tablets
Lighting systems and lighting control (mainly indoor lighting)
Multicopter and drones
Smart building
Smart appliances
Smart home security and alarm systems, including IP cameras

Smart home devices
Air conditioners
Up to 11 m detection range for human targets (with signal processing)
Flexible platform selection
Variable connector options, and option to solder onto other PCBs
Advanced functionalities by SPI configuration or further signal processing
Low power consumption
Domestic robots
Mobile devices and smartphones
Semiconductor solutions for home entertainment applications

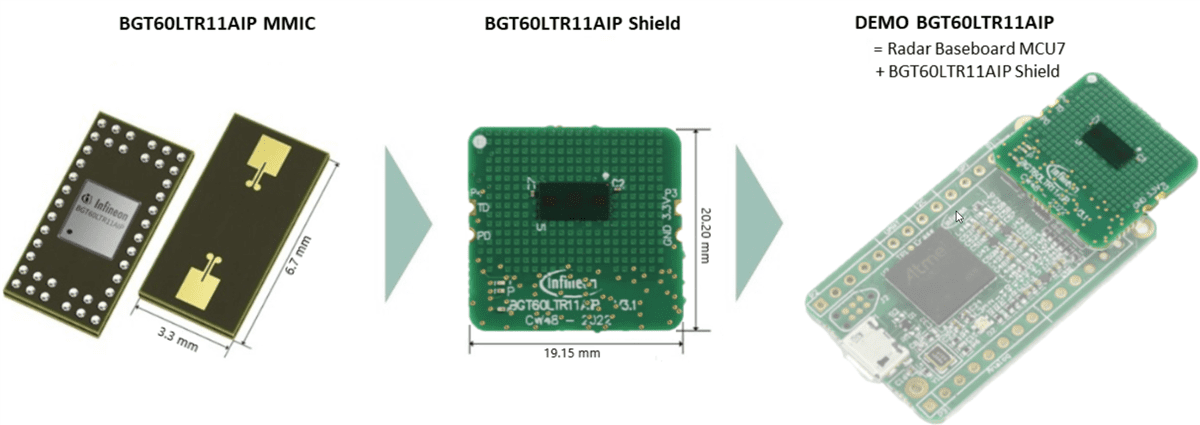

Board Contents

Infineon Technologies DEMOBGT60LTR11AIP Demo Board

Schematic Diagram

Schematic - Infineon Technologies DEMOBGT60LTR11AIP Demo Board
