Infineon Technologies DEMO_XDPS2201_65W1 Demo Board

Infineon Technologies DEMO_XDPS2201_65W1 Demo Board implements the XDPS2201 together with two CoolMOS™ super-junction MOSFETs in a half-bridge configuration. The 65W USB-PD type C PPS Charger Demo Board features high power density and high efficiency with both fixed and PPS output in an ultra-compact form factor.

The Infineon DEMO_XDPS2201_65W1 Demo Board integrates an XDPS2201 digital hybrid flyback controller, IPP60R180C7 and IPD60R180C7 600V CoolMOS™ C7 Superjunction MOSFETs, a BSC093N15NS5 OptiMOS™ PD synchronous-rectification MOSFET, and a BSZ086P03NS3 G -30V OptiMOS™ MOSFET as a safety switch.

Features

  • Ease-of-customization with compact form factor design
  • Reduce BOM count and cost
  • High efficiency and low standby power consumption to meet international regulatory requirements
  • High power density PCBA design of 31W/in3
  • Peak efficiency of 93.8%
  • Wide input voltage 90~264VAC
  • Fixed output of 5V/3A, 9V/3A, 12V/3A, 15V/3A, or 20V/3.25A
  • PPS output of 5V~20V/3A

Applications

  • USB-PD
  • Charger & Adapter
  • SMPS

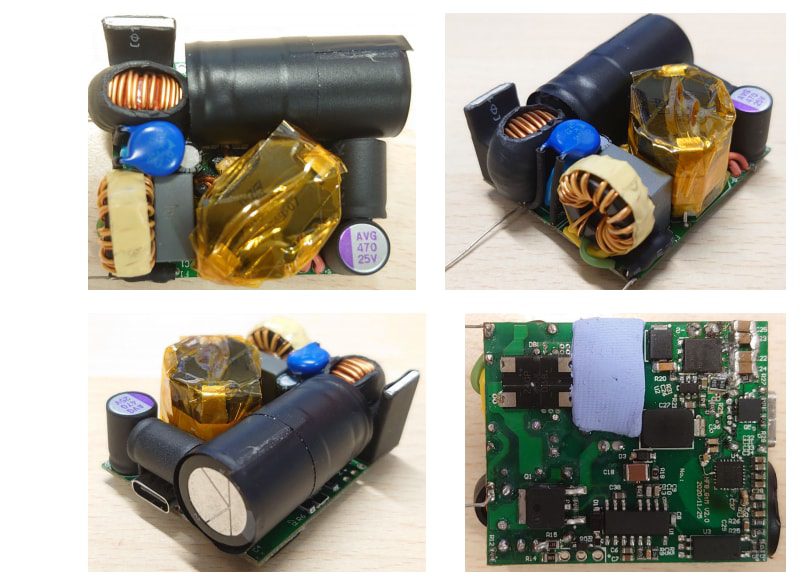

Overview

Infineon Technologies DEMO_XDPS2201_65W1 Demo Board

Infineon Power and Sensing Selection Guide
