Infineon Technologies DEMO_850W_12VDC_230VAC Low-Frequency Transformer

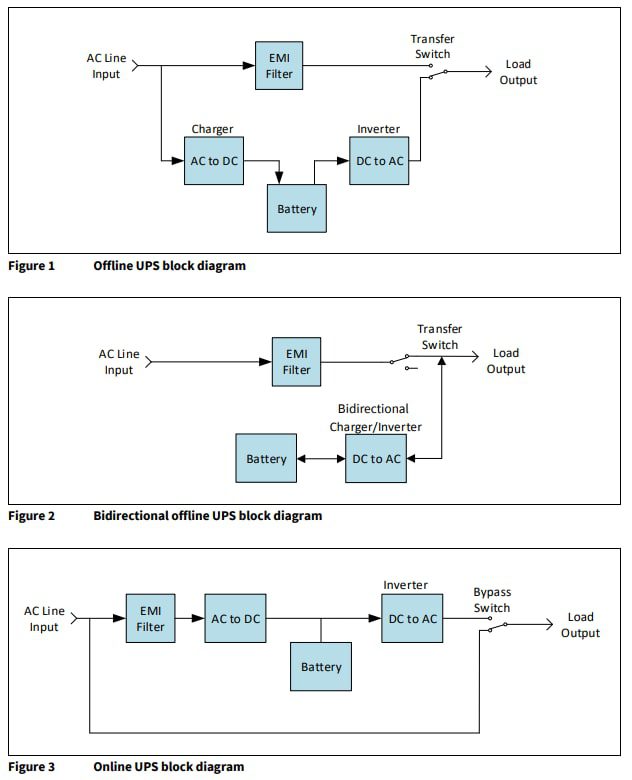

Infineon Technologies DEMO_850W_12VDC_230VAC Low-Frequency Transformer is a solution for use in a small office or home office. It typically includes MOSFET-based inverters that operate from 12V or 24V lead-acid batteries. Higher battery voltages are required to limit operating currents in higher power-rated systems. Batteries may be external or internal to the UPS. Car batteries are used externally and sealed lead-acid batteries internally.

Features

Input and output at normal operation
- Battery voltage 12V DC nominal
- AC input voltage 220V_RMS up to 240V_RMS (55 to 65Hz)
- Output voltage range 220V_RMS up to 240V_RMS (50 or 60Hz)
- Maximum continuous average input current 75A
- Maximum output continuous power 850VA1
- Pure sine wave output
- Inverter start-up time to reach the nominal output voltage during the full-load condition during power outage less than 20 ms
Protection features
- Battery under-voltage and overvoltage protection (UVP/OVP)
- Over-load and short-circuit output protection
- Input fuses 2 x 40A parallel, maximum average input current 80A
- Fuse at AC output, 5A, 250V_RMS
No-load operation
- Output voltage limited to below 240V_RMS during no-load condition
- Max. power losses during no-load condition less than 50W, 230V_RMS output voltage

Maximum component temperatures
- During the worst-case scenario (ambient temperature 60°C) the maximum component temperature is:
- Resistor less than 100°C
- Ceramic capacitor, film capacitor and electrolytic capacitor less than 85°C
- Flyback transformer and chokes less than 100°C
- MOSFET, transistor, and diodes less than 100°C
- IC less than 100°C
Board dimensions
- Mainboard: Maximum width of 8.5″ (335mm), max. length 5.5″ (140mm)
- Daughterboard: Maximum width of 4.0″ (158mm), max. length 2.0″ (79mm)
