Infineon Technologies DC-SHIELD_BTN9960LV DC Motor Control Eval Kit

Infineon Technologies DC-SHIELD_BTN9960LV DC Motor Control Eval Kit enables and supports the evaluation of the MOTIX™ BTN9960LV Single Half-Bridge IC. The board includes two BTN9960LV high current PN half-bridges with integrated driver IC. The motor control shield is designed to drive DC motors with an Arduino-compatible baseboard. The evaluation kit can be controlled using a microcontroller’s logic I/O ports. An Arduino Uno R3 or an Infineon µIO Stick via the µIO port can be used as the controller. The Infineon Technologies DC-SHIELD_BTN9960LV is ideal for automotive applications, precisely 12V automotive motor control using a brushed DC motor.

Features

Enables and supports evaluation of the MOTIX™ BTN9960LV single half-bridge IC
Includes 2x BTN9960LV high current PN half-bridges with integrated driver IC
2x devices on one shield enables efficient testing and evaluation of half-/full-bridge configurations
Designed to drive DC motors in combination with an Arduino-compatible baseboard
Can be controlled with the general logic IO-ports of a microcontroller
Average motor current up to 10A
16-pin connector to interface via a µIO-Stick to a PC or notebook with Infineon’s Toolbox software installed

Connectors to stack the motor control shield directly on top of an Arduino UNO controller board
PWM operation, controlled by Arduino UNO board
Reverse polarity protection by IC0 (PMOS transistor)
Operates as:
- 2x independent single half-bridges to operate 2x DC brushed motors unidirectional
- Single H (full) bridge to operate a DC brushed motor bi-directional
8V to 18V supply range
RoHS compliant

Infineon Technologies DC-SHIELD_BTN9960LV DC Motor Control Eval Kit

Features

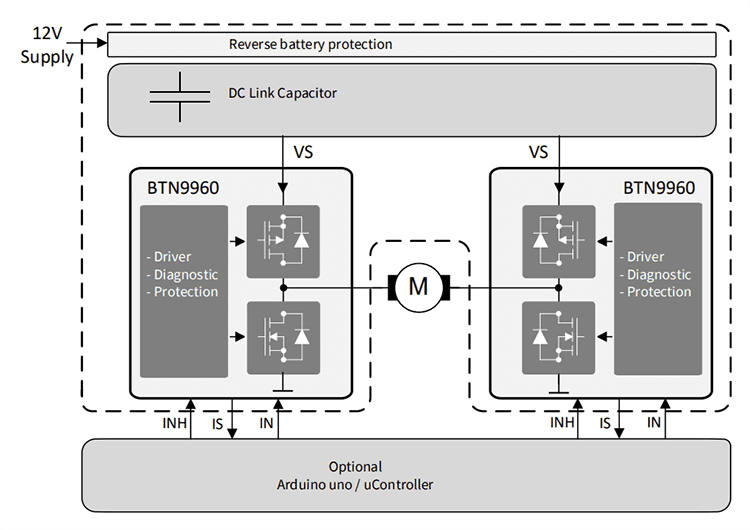

Block Diagram

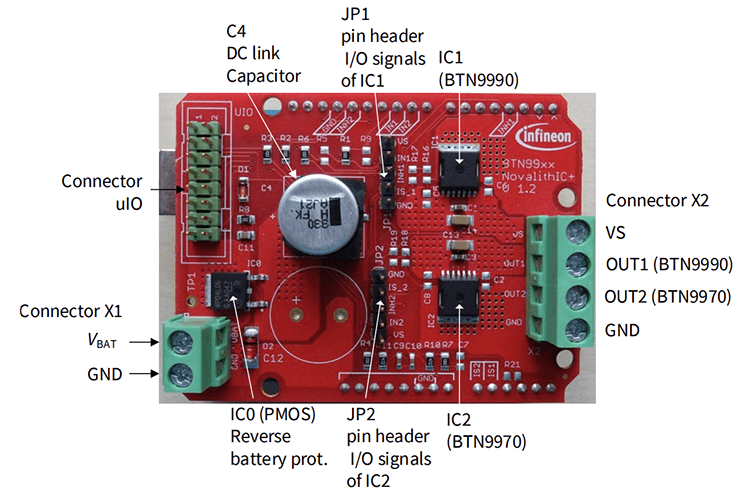

Overview
