Infineon Technologies CYW920719B2Q40EVB-01 Evaluation Kit

Infineon Technologies CYW920719B2Q40EVB-01 Evaluation Kit is a demonstration and development platform for the CYW20719 Dual-Mode BLUETOOTH® 5.0 Wireless MCU. The CYW20719 is a stand-alone baseband processor with an integrated 2.4GHz transceiver supporting BR/EDR/BLE. Manufactured using an advanced CMOS low-power process, the CYW20719 employs a high level of integration to reduce external components, thereby minimizing the device’s footprint and cost. The Infineon CYW920719B2Q40EVB-01 Kit is designed to allow users to easily evaluate the device’s functionality, and to enable the rapid development of applications for faster time-to-market.

Features

CYW20719 Bluetooth 5.0 Compliant BT/BLE Wireless MCU in a QFN40 package
Arduino-compatible headers for hardware expansion
GPIO test headers
User switches and LEDs
USB connector for power, programming, and USB-UART bridge

On-board sensors
- 9-axis motion sensor
  - 3D digital linear acceleration sensor
  - 3D digital angular rate sensor
  - 3D digital magnetic sensor
- Thermistor

ModusToolbox

The CYW20719 Device and the CYW920719B2Q40EVB-01 Evaluation Kit are supported in ModusToolbox and the Bluetooth Software Development Kit (BT SDK).

ModusToolbox simplifies embedded systems development by delivering flexibility and easy-to-use tools within a familiar, integrated development environment (IDE) under Windows®, macOS®, and Linux®. In addition, it provides a sophisticated platform for system peripheral configuration and application-specific configurators for Bluetooth, CapSense, and others.

The BT SDK includes:

Bluetooth firmware
Platform and board support packages
Utilities including BTSpy trace, Manufacturing Bluetooth test tool, Client Control, and Mesh Client control
Peer apps for OTA and Mesh
A rich set of WICED™ connectivity APIs that allow for simplified programming of BT/BLE connectivity
Various sample applications that serve as examples of how to utilize the BT/BLE APIs
More complex code examples that utilize various APIs and middleware to create a complete solution

To learn more about ModusToolbox and download the latest version of the BT SDK, visit the ModusToolbox BT SDK community page.

Kit Contents

CYW920719B2Q40EVB-01 evaluation board
USB Standard-A to Micro-B cable
Quick Start Guide

Infineon Technologies CYW920719B2Q40EVB-01 Evaluation Kit

Features

ModusToolbox

Kit Contents

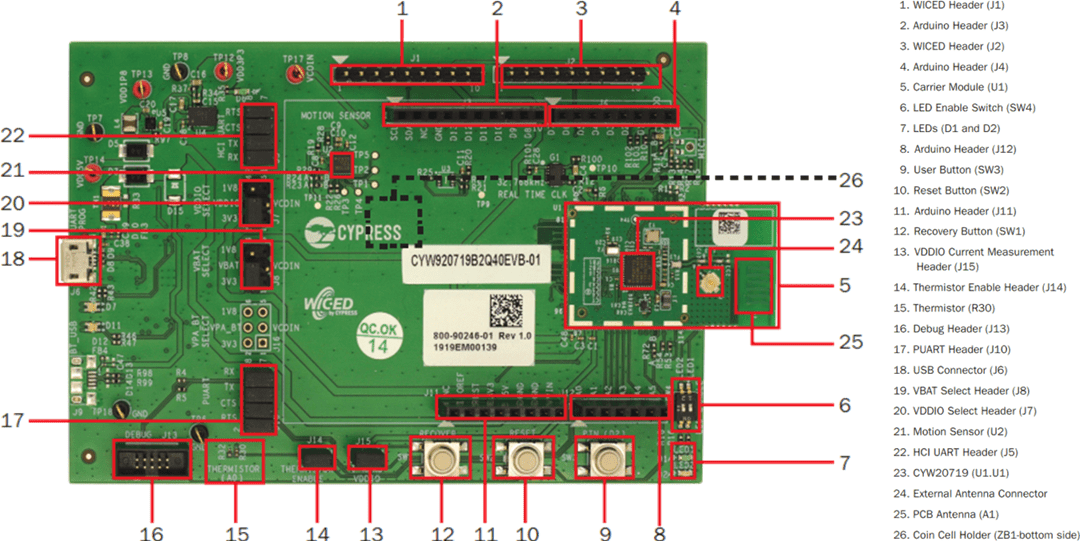

Board Layout

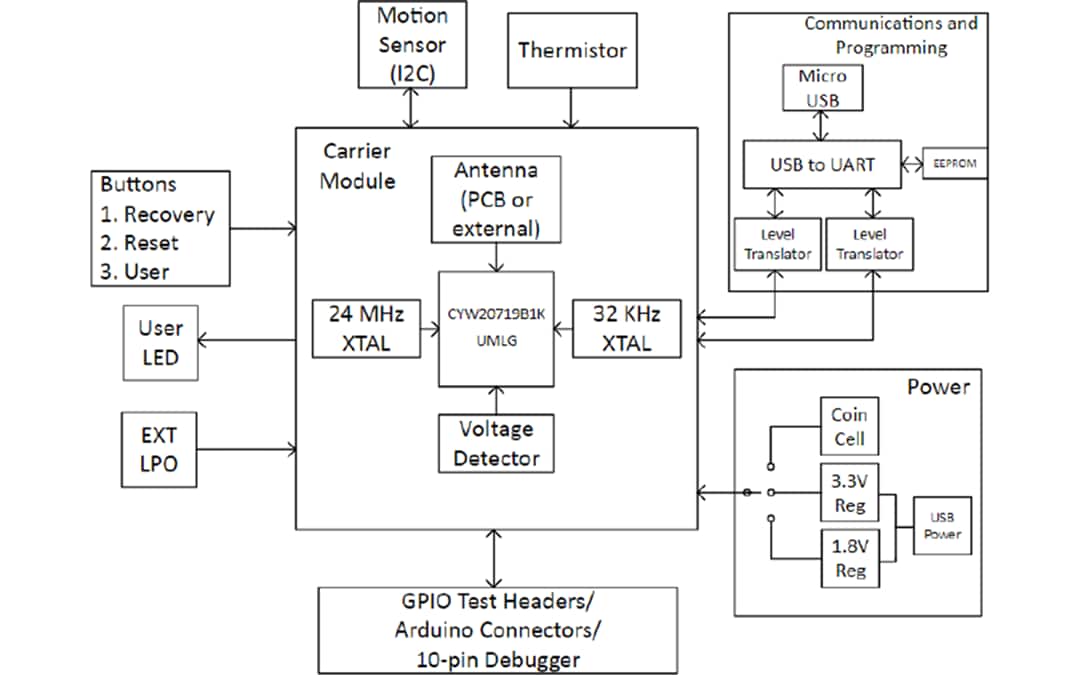

Block Diagram
