Infineon Technologies CY8CKIT PSoC™ 64 Secure Boot Wi-Fi® BT Pioneer Kit

Infineon Technologies CY8CKIT PSoC™ 64 Secure Boot Wi-Fi^® BT Pioneer Kit is a low-cost hardware platform that easily designs and debugs IoT applications. The applications used with this kit include PSoC 64 “Secure Boot” MCU and the Murata 1DX Module (CYW4343W Wi-Fi + BLUETOOTH^® Combo Chip). The PSoC 64 secured line of MCUs features out-of-the-box security functionality. It provides an isolated root-of-trust (RoT) with true attestation and built-in provisioning services.

Features

PSoC 64 “Secure Boot” MCU (CYB0644ABZI-S2D44)
- 150MHz Arm^® Cortex^®-M4 (non-secured processing environment)
- 100MHz Arm Cortex-M0+ (pre-configured with a root-of-trust and secured processing environment)
- Up to 2MB of Flash, up to 1MB of SRAM
- Secure Digital Host Controller (SDHC) supporting SD/SDIO/eMMC interfaces
- Programmable analog blocks and programmable digital blocks
- Full-Speed USB
- Serial memory interface
- Industry-leading capacitive sensing with CAPSENSE™
- PDM-PCM digital microphone interface
Murata Type 1DX ultra-small 2.4GHz WLAN and BLUETOOTH functionality module based on CYW4343W

512Mbit external Quad SPI NOR Flash that provides a fast, expandable memory for data and code
4Mbit Quad SPI ferroelectric random-access memory (F-RAM)
KitProg3 onboard SWD programmer/debugger with USB-UART and USB-I²C bridge functionality
CAPSENSE touch sensing slider (5 elements) and two buttons, capable of using self-capacitance (CSD) or mutual-capacitance (CSX) sensing methods
Supports 8V, 2.5V, and 3.3V operation
2x user LEDs, 1x RGB LED
2x user buttons, 1x reset button
Potentiometer
1x Mode selection button
1x Status LED for KitProg3
MicroSD card holder

Kit Contents

PSoC 64 “Secure Boot” Wi-Fi BT Pioneer Board
USB Type-A to micro-B cable
Four jumper wires (four inches each)

Two jumper wires (five inches each)
Quick Start Guide

Infineon Technologies CY8CKIT PSoC™ 64 Secure Boot Wi-Fi® BT Pioneer Kit

Features

Kit Contents

Baseboard Block Diagram

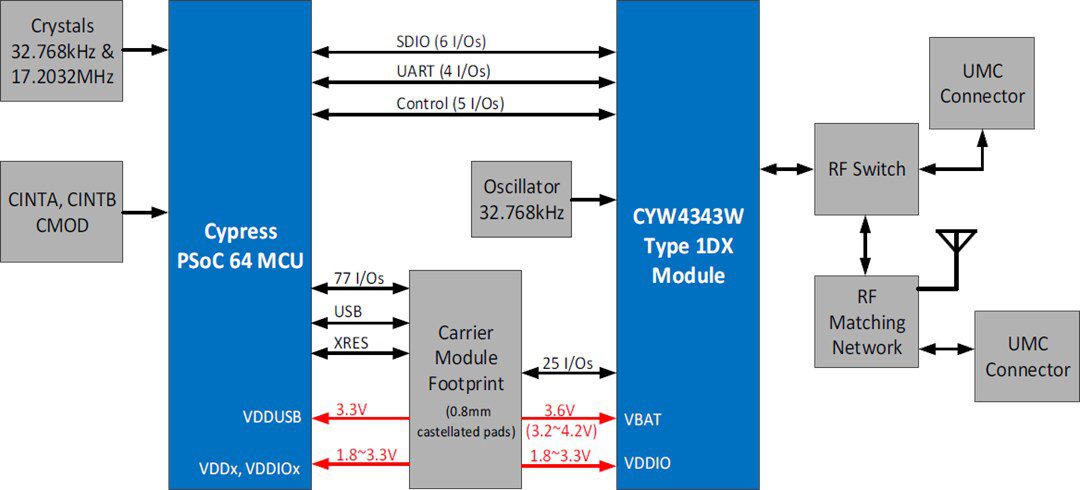

Carrier Module Block Diagram
