Infineon Technologies CY8CEVAL-062S2 PSoC™ 62S2 Evaluation Kit

Infineon Technologies CY8CEVAL-062S2 PSoC™ 62S2 Evaluation Kit evaluates and develops applications using the PSoC 62 MCU. This kit features the PSoC 62 MCU (CY8C624ABZI-S2D44). The CY8C624ABZI-S2D44 offers 150MHz Arm^® Cortex^®-M4 cores, 100MHz Arm Cortex-M0+ cores, 2MB of Flash, 1MB of SRAM, hardware crypto accelerator, and rich analog and digital peripherals. The CY8CEVAL-062S2 PSoC 62S2 evaluation kit also features M.2 interface connector to connect the M.2 radio modules, OPTIGA trust-M security controller, and mikroBUS interface.

Features

PSoC 62 MCU (CY8C624ABZI-S2D44)
M.2 interface connector to connect the M.2 radio modules
mikroBUS interface for hardware expansion using click boards
512-Mbit external Quad-SPI NOR Flash, 4-Mbit Quad SPI F-RAM, and microSD card interface
KitProg3 on-board SWD programmer/debugger and USB-UART and USB-I²C bridge functionality through the USB connector

Headers compatible with Arduino Uno R3 for hardware expansion using Arduino shields
CAPSENSE buttons and slider for touch-sensing and proximity-sensing applications
User buttons, LEDs, and a potentiometer for analog input
OPTIGA trust-M security controller

Kit Contents

PSoC 62S2 evaluation board
Sterling-LWB5+ Wi-Fi / BLUETOOTH^® M.2 radio module from Laird Connectivity (plugged into the PSoC 62S2 evaluation board)
USB Type-A to micro-B cable

FlexPIFA antenna from Laird Connectivity
Four jumper wires (4 inches each) and two jumper wires (5 inches each)
Quick start guide

Infineon Technologies CY8CEVAL-062S2 PSoC™ 62S2 Evaluation Kit

Features

Kit Contents

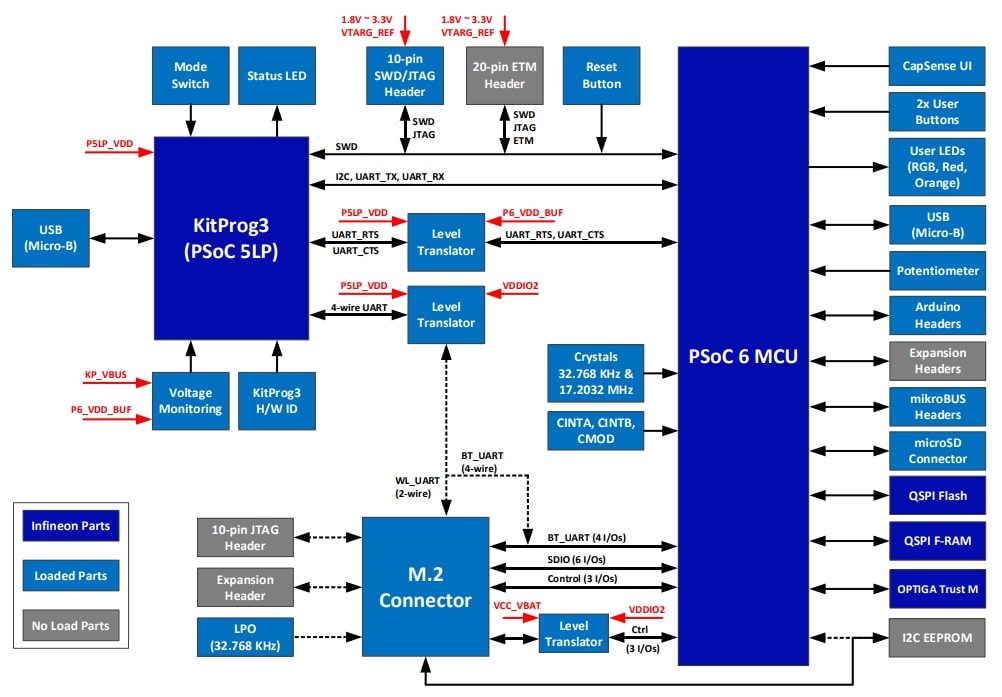

Block Diagram

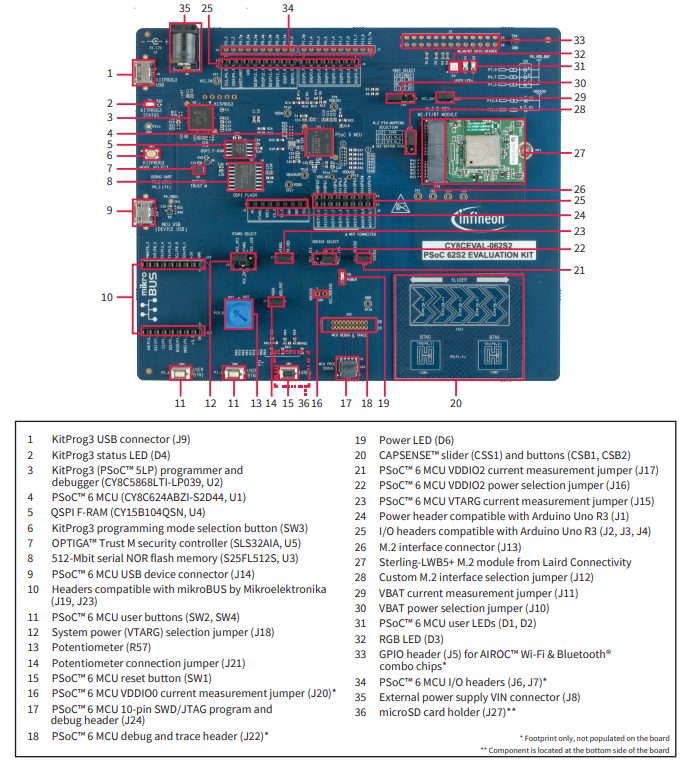

PSoC™ 62S2 Board Details
