Infineon Technologies CY7113 EZ-PD™ PMG1-S3 MCU Prototyping Kit

Infineon Technologies CY7113 EZ-PD™ PMG1-S3 MCU Prototyping Kit is a development platform for designing products that can be powered from a high-voltage USB PD port. The products may also need a microcontroller with CAPSENSE™ capability to implement different applications. The CY7113 EZ-PD PMG1-S3 MCU prototyping kit supports the USB PD 3.1 protocol up to 140W (28V, 5A) of power consumption. This kit also supports two self-capacitance-based CAPSENSE buttons and one 5-segment slider.

Features

Support for single-port USB PD 3.0 sink role (UFP)
USB bus-powered operation
Compatible with the example projects implemented in ModusToolbox™ software
Onboard KitProg3 programming and debugging module
100W (20V/5A) power handling capability
Standard breadboard compatible design

Snap-away design to separate KitProg3 and EZ-PD PMG1 microcontroller board
Onboard 3.3V regulator
Optional 10-pin standard SWD interface for MiniProg4 or third-party programmer/debugger module
Firmware-controlled LED and user button
Two self-capacitance-based CAPSENSE™ buttons and one 5-segment slider
I/O headers

Infineon Technologies CY7113 EZ-PD™ PMG1-S3 MCU Prototyping Kit

Features

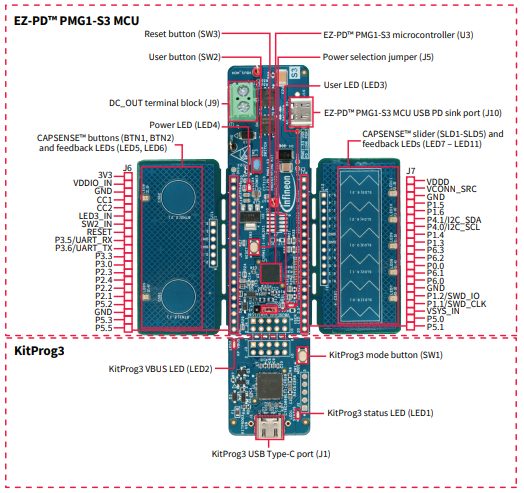

Kit Connections

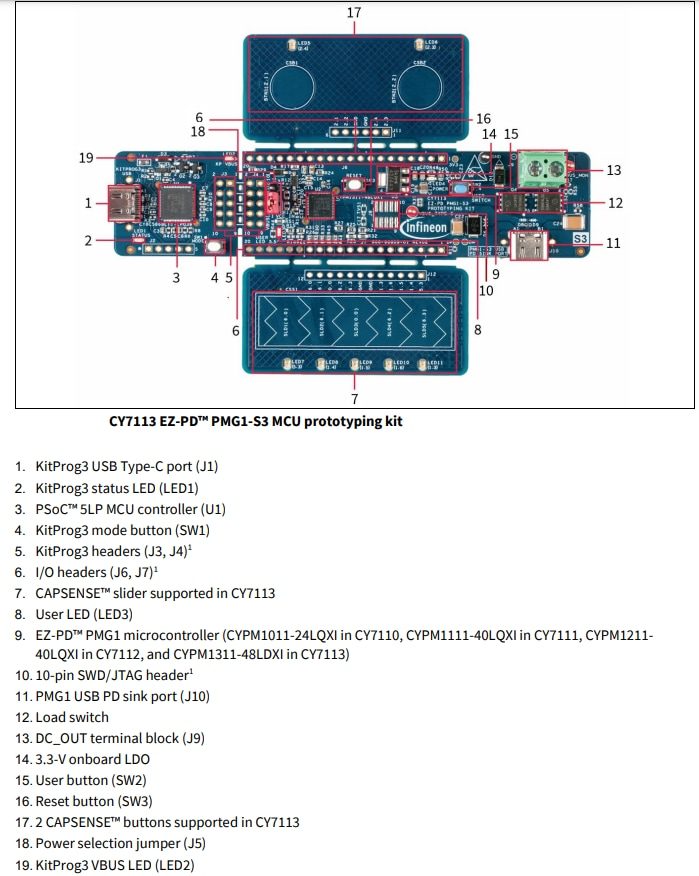

Kit Components
