Infineon Technologies CoolGaN™ Integrated Power Stages (IPS)

Infineon Technologies CoolGaN™ Integrated Power Stages (IPS) combine a half-bridge power stage with two enhancement mode CoolGaN HEMTs, including dedicated gate drivers in a small 8mm x 8mm QFN-28 package. The devices include the IGI60F1414A1L, IGI60F2020A1L, IGI60F2727A1L, and IGI60F5050A1L with two 140mΩ, 200mΩ, 270mΩ, and 500mΩ GaN switches, respectively.

The Infineon CoolGaN IPSs utilize the low-to-medium power area to support the design of high-density AC/DC chargers and adapters, implementing the superior switching behavior of CoolGaN HEMTs. The CoolGaN and Infineon’s other related power switches enable a very robust gate structure. When driven by a continuous gate current of a few mA in the “on” state, a minimum on-resistance Rdson is continually guaranteed.

Features

Two GaN switches in a half-bridge configuration with dedicated high- and low-side isolated gate drivers
- Source/sink driving current up to 1A/2A
- Application-configurable turn-on and turn-off speed
Fast input-to-output propagation (typ. 47ns) with extremely small channel-to-channel mismatch
PWM input signal (switching frequency up to 3MHz)
Standard logic input levels compatible with digital controllers
Single gate driver supply voltage possible (typ. 8V) with fast UVLO recovery

Wide supply range
Low-side open source for current sensing with an external shunt resistor
Galvanic input-to-output isolation based on robust coreless transformer technology
Gate driver with very high common mode transient immunity (CMTI) of >300V/ns
Thermally enhanced 8mm x 8mm QFN-28 package
Fully qualified acc. to JEDEC for industrial applications

Applications

Chargers and adaptors
Server, telecom, and networking SMPS

Low-power motor drives
LED lighting

Power Topologies

• Active clamp flyback or hybrid flyback converters
• LLC or LCC resonant converters
• Single or interleaved synchronous buck or boost converters
• Single-phase or multiphase two-level inverters

Infineon Technologies CoolGaN™ Integrated Power Stages (IPS)

Features

Applications

Power Topologies

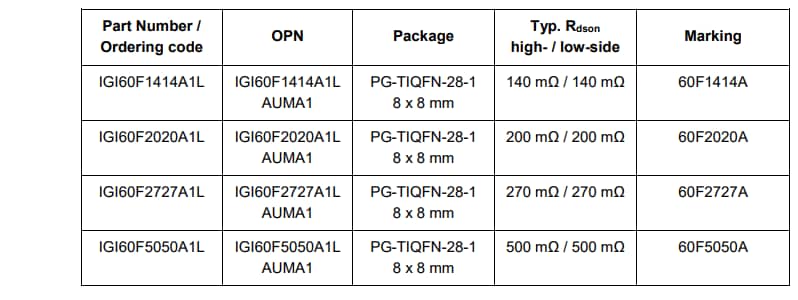

Specifications Chart
