Infineon Technologies BTT3018EJ Demonstration Board

Infineon Technologies BTT3018EJ Demonstration Board (BTT3018EJDEMOBOARDTOBO1) provides an evaluation platform for the BTT3018EJ HITFET™ 16mΩ, Single-Channel Smart Low-Side Power Switch. The Demonstration Board features a pre-mounted BTT3018EJ device in a PG-TDSO-8 exposed pad package. All device pins can be directly accessed for signal measurements. The BTT3018EJ Demonstration Board can be used as a stand-alone evaluation tool or used in combination with an Arduino UNO.

The BTT3018EJ Demonstration Board can be controlled either with the general logic I/O-ports of a microcontroller or with a PWM. The Demonstration Board includes a typical application circuit to control the BTT3018EJ. This Board offers a quick evaluation of the device, the
Status Latch functionality, SRP functionality, and all protection features.

Features

Pre-mounted BTT3018EJ device in a PG-TDSO-8 exposed pad package
Arduino and XMC1100 Boot Kit compatible
Provides continuous current load (36V, 20A) between V_OUT and GND
Green LED indicates when the logic supply voltage is connected and ON
Test points for Output Voltage, Input Logic, Status, and SRP
Output Voltage, Input Logic, and Status can be monitored via the Arduino interface

Board Layout

Infineon Technologies BTT3018EJ Demonstration Board

Setup Example (Arduino)

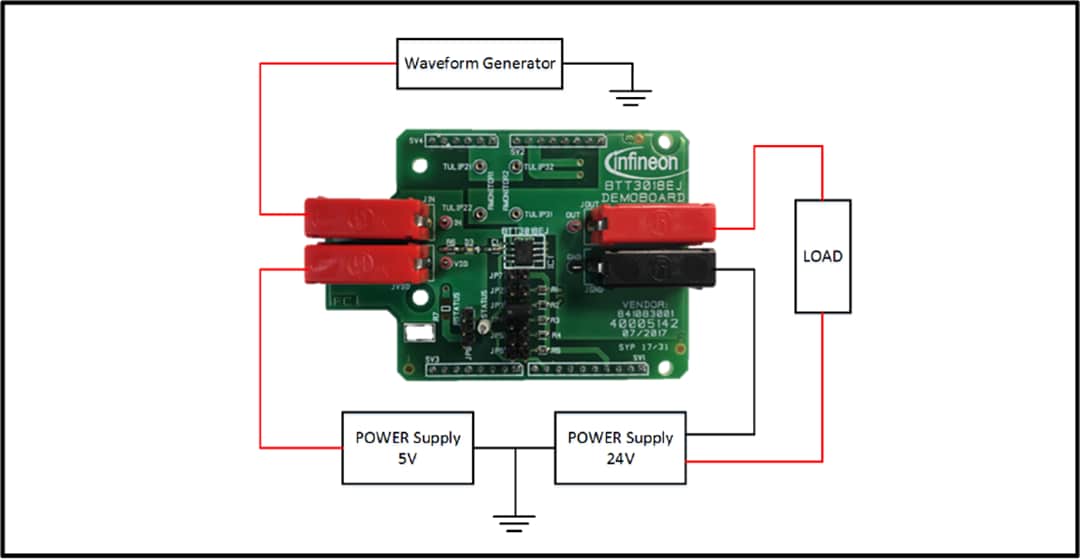

Setup Example (Oscilloscope)
