Infineon Technologies BTS50025-1TEA Shield for Arduino

Infineon Technologies BTS50025-1TEA Shield for Arduino provides a simple and easy-to-use user interface for getting familiar with BTS50025-1TEA high side switch running on PC. This shield comes with four samples of the BTS50025-1TEA switches to drive four different loads. The BTS50025-1TEA switch is a low ohmic smart high side power switch that is available in a DPAK package. This shield can be used in stand-alone mode or controlled by an Arduino board or Arm^® powered XMC™ microcontroller kits using the Arduino form factor. The BTS50025-1TEA shield comes with test points for each input control, each current sense, and each output.

Features

Evaluates the BTS50025-1TEA driving a specific load
Comes with four BTS50025-1TEA switches
Checks the BTS50025-1TEA behavior using PWM signals generated by the Arduino board
Captures the current profiles of the driven loads on the Arduino
Each BTS50025-1TEA can be independently controlled from the Arduino digital connector (D9 to D12)
The load current sensed by each BTS50025-1TEA can be sampled by the Arduino on the analog connector (A0 to A3)
Output voltage, input logic, and analog current feedback can be measured externally with test points

Test points for each input control, each current sense, and each output
Easy plug of scope probes to monitor signals on the board
Compatible with Infineon XMC1100 boot kit and the Arduino UNO
Provides a continuous current of up to 25A to 4 different loads (12V)
An LED will turn ON to indicate that BTS50025-1TEA is switched ON

Applications

Automotive:
- Starter relay in “start-stop” systems
- Electric brake vacuum pumps
- Positive Temperature Coefficient (PTC) heating systems
- Glow plugs
Robot applications:
- 12V DC motor drives with up to 4 motors that offer up to 20A each

3D printer:
- Heating elements control (heating plate and heating resistance)
- Protected 12V supply for control boards

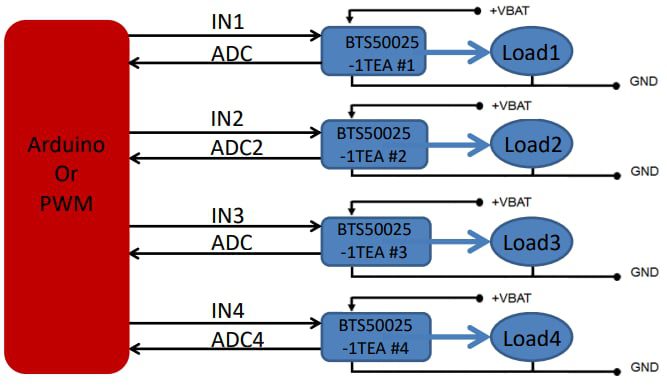

Block Diagram
