Infineon Technologies BTS500101TAEx Switch Boards

Infineon Technologies BTS500101TAEx Switch Boards include BTS50010-1TAE, an ultra-low ohmic smart high-side power switch. These boards feature a 1mΩ typical R_{DS (ON)}, up to 40A nominal DC current, and up to 250A outstanding inrush capability. The BTS500101TAEx boards are ideally used in Solid State Relays (SSRs) for two-wheeler motor starters with a 150cc or smaller engine and up to 3-meter cabling length. These boards come in a compact 44.5mm x 26.5mm D2PAK 7-pin package.

Features

Undervoltage shutdown (threshold is 5V ± 0.5V)
Reverse battery protection by turning on the internal MOSFET
Secure load turn-off during the loss of Ground (GND)
Overtemperature and overcurrent (short circuit) protection with a latch-off mechanism
D2PAK 7-pin package

44.5mm x 26.5mm dimensions
1mΩ typical R_DS(ON)
Up to 40A DC current
Up to 250A outstanding inrush capability current

Infineon Technologies BTS500101TAEx Switch Boards

Features

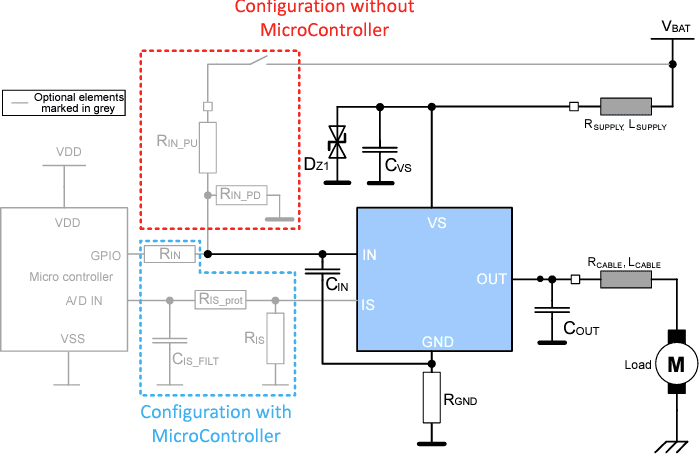

Application Diagram

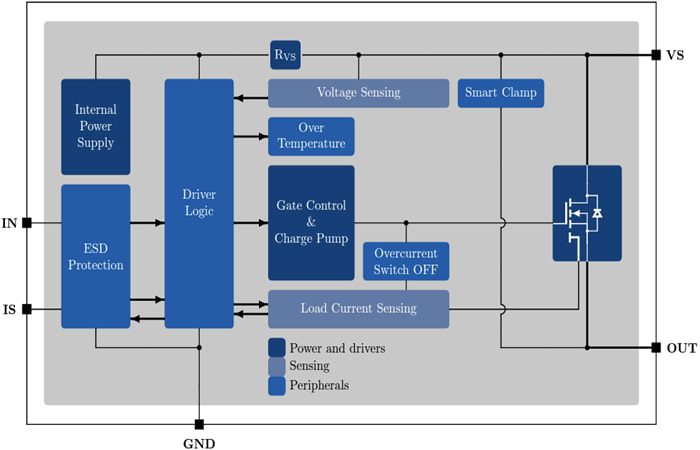

Block Diagram

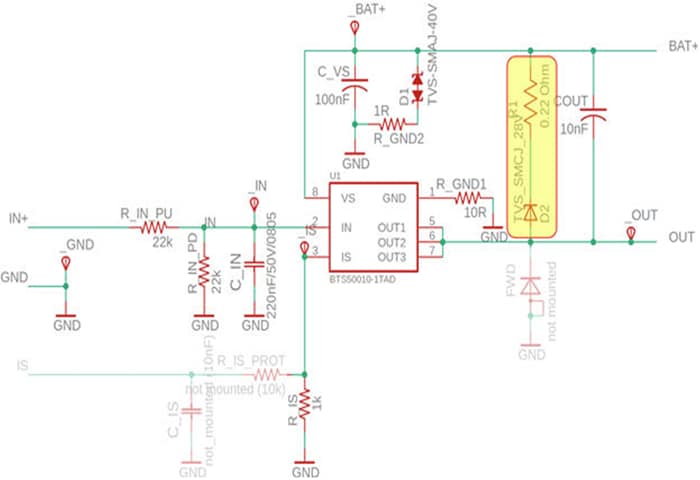

Schematic of BTS50010-1TAE Demoboard
