Infineon Technologies Auxiliary Water Pump Reference Design

Infineon Technologies Auxiliary Water Pump Reference Design is developed for 3-phase automotive auxiliary water pumps in the thermal management system. The reference design offers minimal BOM and PCB size and is optimized in terms of EMC and thermal behavior. The water pump reference design consists of three major parts including TLE9879QXW40 embedded power IC, IAUC60N04S6N031H 40V MOSFET, and IPZ40N04S5-3R1 OptiMOS™. Typical applications include the auxiliary water pump, oil pump, 100W BLDC motor for 12V application.

Features

Up to 140W power capability for 12V auxiliary water pump applications
TLE9879QXW40 embedded power IC, IAUC60N04S6N031H 40 V MOSFET, and IPZ40N04S5-3R1 OptiMOS™
Optimized BOM and PCB size (55mm × 55mm size)
Optimized thermal behavior

SWD port for debug connection
Enables LIN communication
High-temperature FR4 PCB with 1oz, 4-layer Copper
Single-side component mounting

Applications

Auxiliary water pump
Oil pump

100W BLDC motor for 12V application

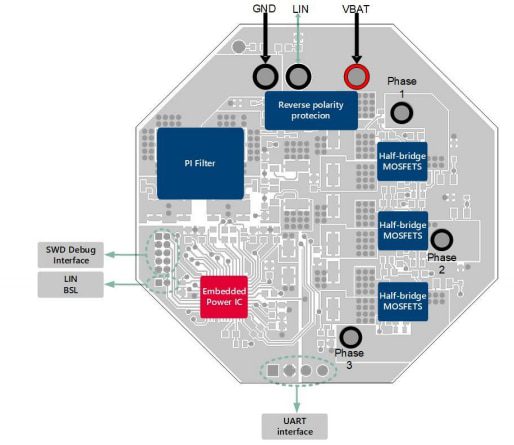

Block Diagram
