Infineon Technologies AURIX™ TC3X7 Evaluation Board

Infineon Technologies AURIX™ TC3X7 Evaluation Board (KIT_A2G_TC377_5V_TRB_S) is a demonstration and development platform for the TriCore TC3X7 AURIX Microcontrollers. The TC3X7 MCUs offer a rich portfolio of peripherals, including 1Gbit/s Ethernet, CAN FD, FlexRay™, and multiple SPIs. The devices also feature ISO 26262 compliance to support safety requirements up to ASIL-D, making them ideal for use in automotive camera systems, high-definition safety headlight systems, and sensor fusion applications.

The Infineon Technologies AURIX™ TC3X7 Evaluation Board includes a pre-mounted TC377TE in an LFBGA-292 package. The target device is mounted in a socket so that it can be easily changed, making the Evaluation Board ideal for early project development.

Features

Infineon TC377 AURIX™ 2G Microcontroller in an LFBGA-292 package, socket-mounted
FlexRay Transceivers
High-Speed CAN Transceivers (CAN-FD capable)
2K I²C Serial Eeprom with EUI-48™ Node Identity
USB to UART bridge
Ethernet Gigabit PHY
Serial Eeprom
LIN Transceiver
Crystal 20MHz (default) or external clock
USB to UART bridge
USB miniWiggler JDS for easy debugging
8x low power status LEDs
8-DIP switches for configuration
Access to all pins of the microcontroller
100mm x 160mm (EURO-Board) PCB

Connectors
- Standard power connector
- Micro USB connector for ASC Interface (ASC0) and miniWiggler
- RJ45 connector for Ethernet
- 16-pin header for JTAG interface (OCDS)
- 3x 10-pin header for DAP, DAPE, and DAP_SCR (DAPE only usable on Emulation Device)
- 10-pin (2×5) Header for LIN Transceiver (LIN)
- 2x 10-pin (2×5) Header for CAN High-Speed Transceiver (CAN0 and CAN1)
- 2x 10-pin (2×5) Header for FlexRay (ERAY-A and ERAY-B)
- 4x 80-pin connectors (male) + 4x 80-pin connectors (female) with all I/O signals

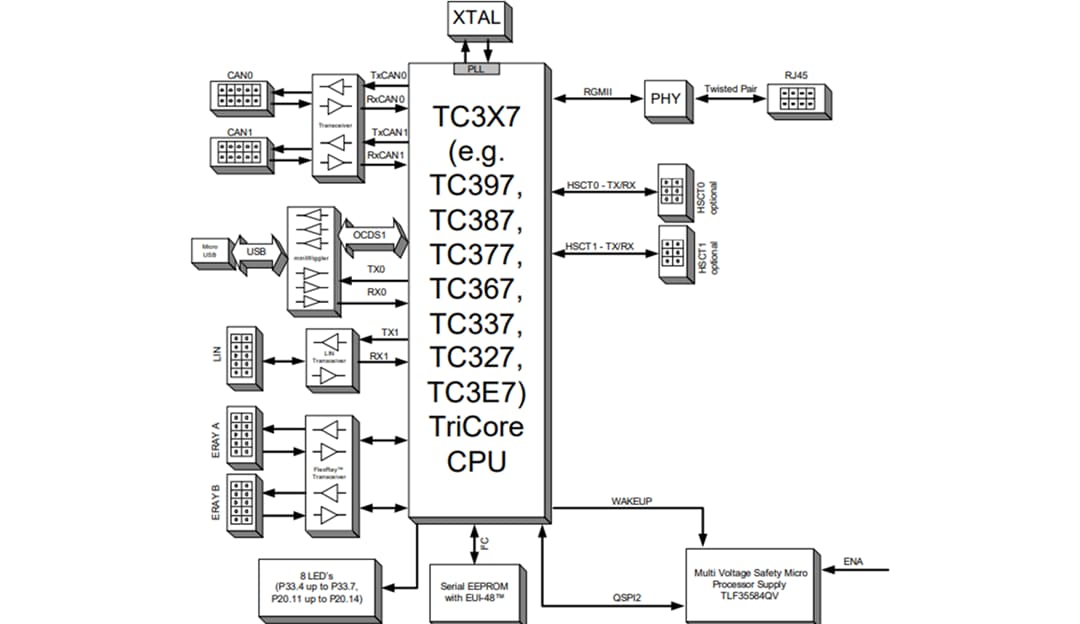

Block Diagram
