Infineon Technologies AIROC™ CYW920829M2EVK-02 BLUETOOTH® LE SoC Kit

Infineon Technologies AIROC™ CYW920829M2EVK-02 BLUETOOTH® LE SoC Evaluation Kit allows users to demonstrate Bluetooth applications using the AIROC CYW20829, an ultra-low-power Bluetooth LE 5.4 MCU. The CYW20829 delivers a long-range performance without ePA, robust ultra-low latency HID without a dongle, a highly integrated MCU for reduced complexity and system cost, and excellent reliability for a wide range of applications.

The ModusToolbox™ software environment supports the Infineon CYW20829 MCU application development with a comprehensive set of tools for configuration, setting up peripherals, and complementing user projects with superior middleware using the AIROC Bluetooth stack.

Features

Standard Arduino headers support
Supports 3.3V, coin-cell (3V), and 1.8V operation
Customizable/Programmable user buttons
Onboard micro-USB connector for programming and debugging
Onboard sensors, including a six-axis inertial measurement unit, thermistor, and mic

Support for Infineon’s AIROC BTSTACK, a software implementation of Bluetooth core 5.4 host protocol stack
Support for the ModusToolbox™ software environment with configuration tools, low-level drivers, and middleware libraries to enable users to create applications
Support for code examples from the Infineon GitHub repository

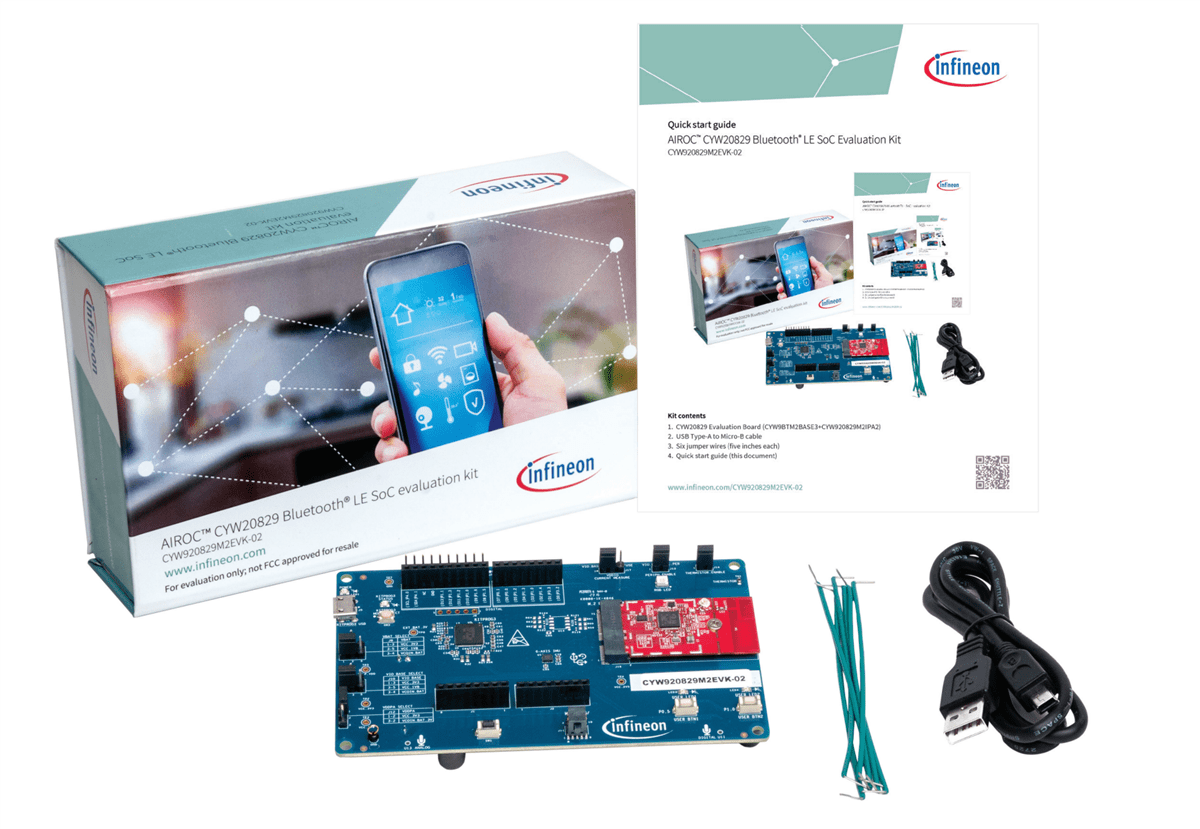

Kit Contents

CYW20829 Evaluation Board (CYW9BTM2BASE3+CYW920829M2IPA2)
USB Type-A to Micro-B cable

Six jumper wires (five inches each)
Quick start guide

Infineon Technologies AIROC™ CYW920829M2EVK-02 BLUETOOTH® LE SoC Kit

Features

Kit Contents

Videos

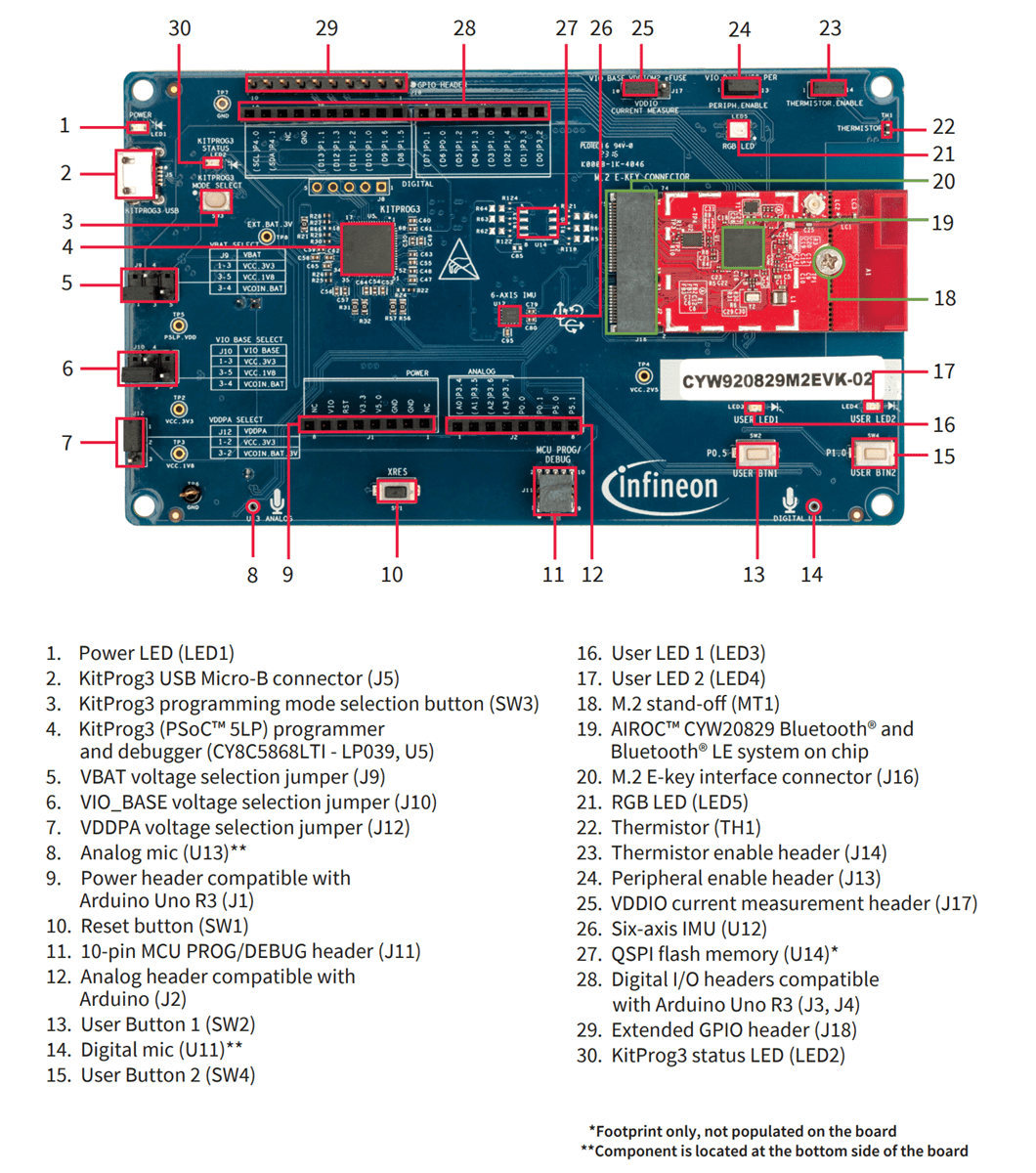

Overview

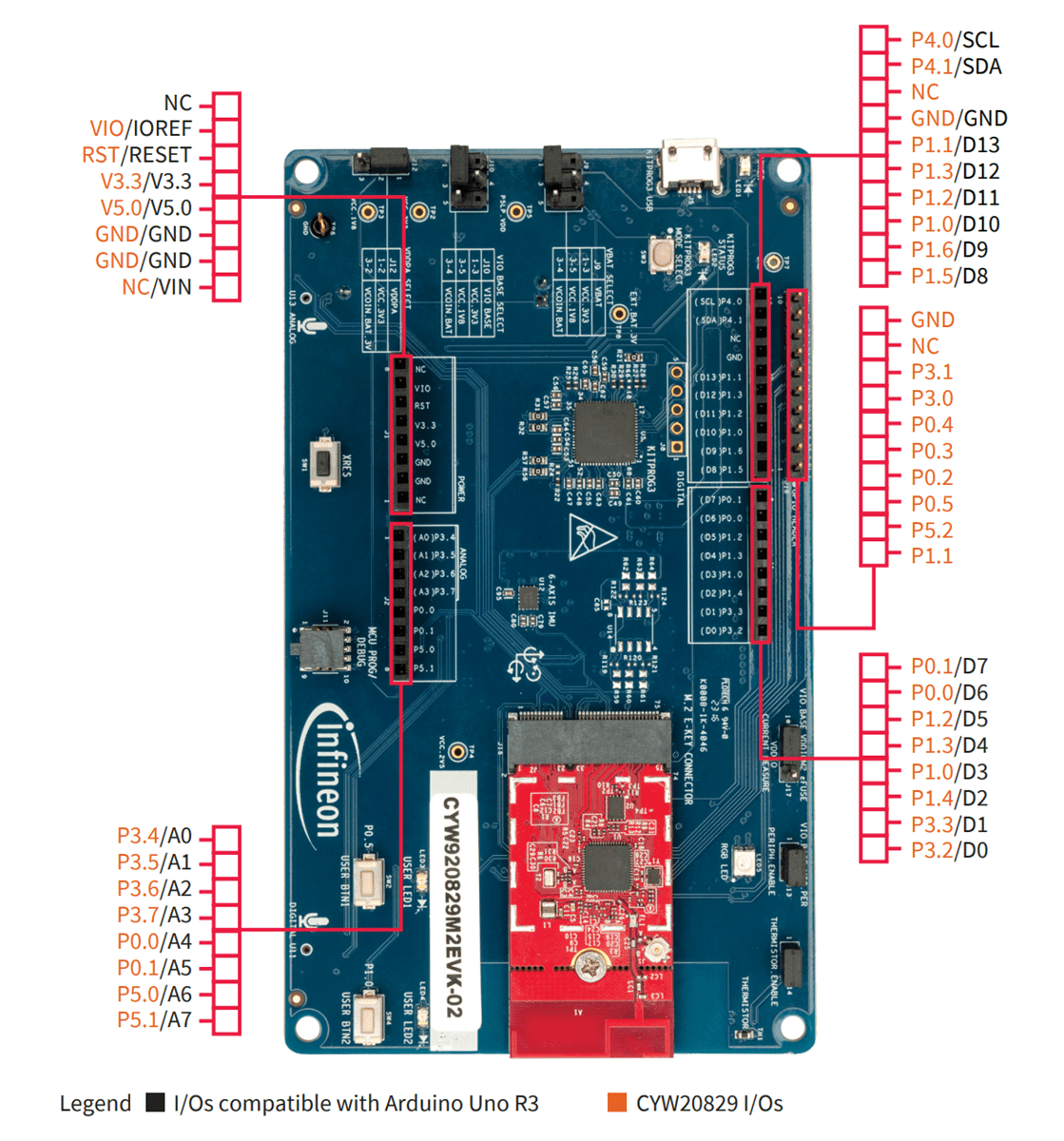

Pinout Details
