Infineon Technologies 750V EDT2 Discrete IGBTs

Infineon Technologies 750V Electric Drive Train 2 (EDT2) Discrete IGBTs let the users take advantage of cutting-edge EDT2 technology and the innovative TO-247PLUS SMD packages. The TO-247PLUS SMD package provides unparalleled performance in challenging conditions, paving the way for reliable, efficient, and cost-effective power semiconductor solutions. The 750V EDT2 discrete IGBTs in TO-247PLUS SMD packages allow reflow soldering resistance and non-delaminating design. This first-of-its-kind, delamination-free package features a TO-247 footprint and houses a 200A 750V IGBT co-packed with a 200A 750V diode in a 3-pin configuration. The 750V EDT2 discrete IGBTs are ideal for construction, commercial, Construction and Agricultural Vehicles (CAVs), trucks and buses, General Purpose Drives (GPDs), and motor drive applications.

Features

750V V_CE
Continuous Collector current I_C:
- 200A (IKQB200N75CP2)
- 160A (IKQB160N75CP2)
- 120A (IKQB120N75CP2)
1.4V low saturation voltage V_CEsat
Low switching losses
3µs short circuit ruggedness
For higher breakdown voltage and low spread of C_RES for easy IGBTs paralelling

IGBT co-packed with full current, soft and fast recovery diode
Optimized for hard switching topologies up to 10kHz
Package backside suitable for reflow soldering at 245°C, 3 times
- Improved thermal performance, easy automated assembly, and reduced costs
Plating of pins further enables electrical resistance welding
Qualified for industrial applications according to the relevant tests of JEDEC47/20/22

Applications

Construction and Agricultural Vehicles (CAVs)
CAV powertrain control modules
General Purpose Drives (GPDs)
Motor drives

Trucks and buses
Electric vehicle market
Commercial

Infineon Technologies 750V EDT2 Discrete IGBTs

Features

Applications

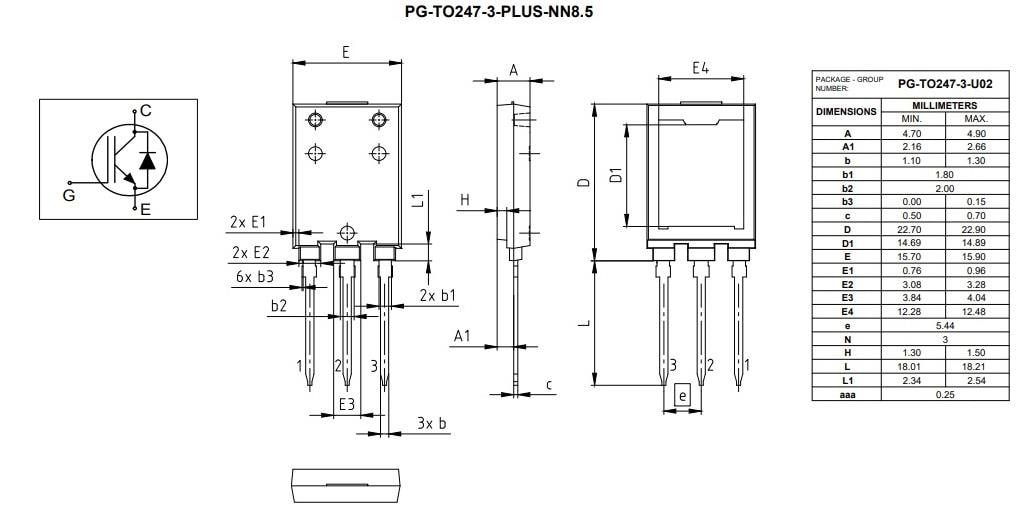

Package Outlines
