Infineon Technologies 600V CoolMOS™ S7A Power MOSFETs

Infineon Technologies 600V CoolMOS™ S7A Power MOSFETs are superjunction MOSFETs that address xEV applications where MOSFETs are switched at low frequency. These MOSFETs’ design offers a cost-optimized, 10mΩ low on-resistance RDS(on), enabling increased power density and minimized conduction losses. The S7A MOSFETs are automotive-grade AEC-Q101 devices that meet the highest automotive quality. These MOSFETs with top-side cooled QDPAK, and bottom-side cooled QDPAK packages offer increased efficiency and controllability. The 600V MOSFETs are used in HV eFuse, HV eDisconnect, and onboard chargers.

Features

  • Best-in-class 10mΩ RDS(on)
  • Smallest RDS(on) in SMD package
  • Optimized for conducting performance
  • Improved thermal resistance
  • High pulse current capability
  • Body diode robustness at AC line commutation
  • Kelvin-source concept
  • Minimized conduction losses
  • Increased energy efficiency
  • More compact and easier designs
  • Increased power density
  • Flexible system integration
  • Variable cooling strategy
  • Scalable technology

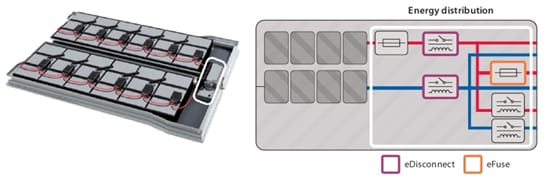

Applications

  • HV eFuse
  • HV eDisconnect
  • Onboard charger
Infineon Technologies 600V CoolMOS™ S7A Power MOSFETs
