Infineon Technologies 2ED020I12FA Evaluation Kit

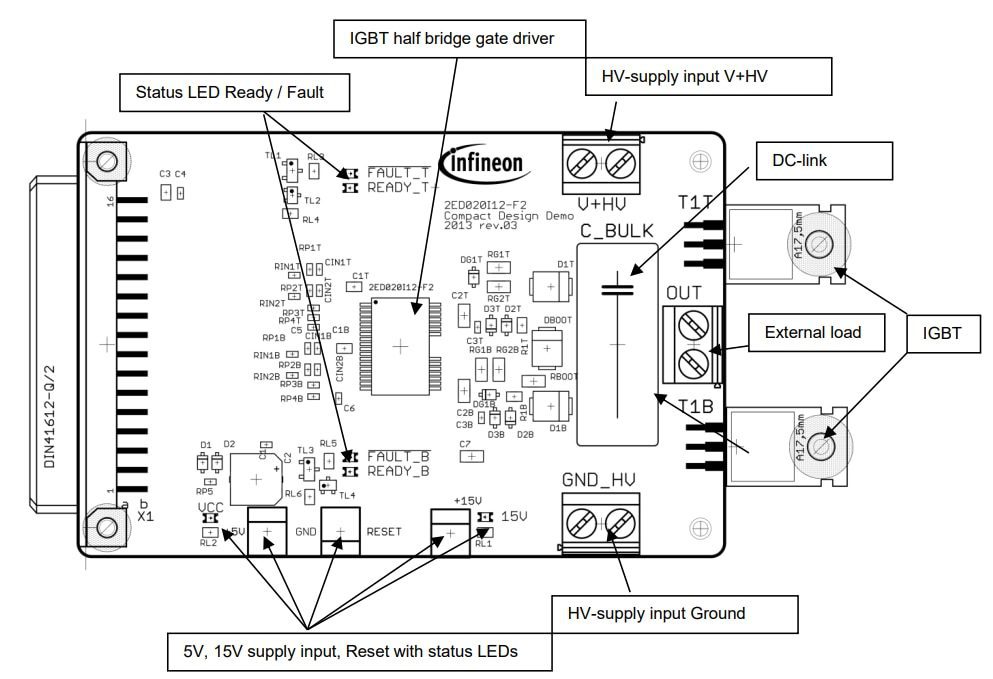

Infineon Technologies 2ED020I12FA Evaluation Kit is used to show the functionalities and key features of the Infineon IGBT gate driver 2ED020I12-F2. The board is available from Infineon in sampling quantities. The EVAL_2ED020I12-F2 contains an Infineon IGBT gate half-bridge driver 2ED020I12-F2 and twoInfineon IGBTs IKP20N60H3.

Features

Galvanic isolation by the coreless transformer technology of the Infineon gate driver
The gate 2ED020I12-F2 is suitable for basic isolation
Isolation inside the half-bridge by defined creepage
Short circuit protection
Under-voltage lockout
Active Miller clamp

Bootstrap functionality for high side IGBT
Connector for 5V digital supply, 15V supply, Reset, High voltage supply, external load
Status LED for 5V supply, 15V supply, ready and fault separated for high- and low side driver
DC link capacitor

Design feature
