Industrial Shields Spartan Arduino PLC

Industrial Shields Spartan Arduino PLC is an open type controller that operates at 12V to 24V of input voltage range (V_DC). This controller offers communication using I²C by a master-slave connection that connects up to 127 modules. The Spartan connector features 16x of both digital and analog inputs/outputs and provides clock speed of up to 16MHz. This connector is available in 100mm x 45mm x 115mm dimensions size and offers a USB port, a Modbus (RTU), an I²C, and an SPI for communication.

Features

12V to 24V input voltage range (V_DC)
30W power
1.5A maximum current
100mm x 45mm x 115mm dimensions size
Inputs:
- 8x digital inputs (7V to 24V V_DC)
- (6x) of 8x, analog inputs (0 to 10V V_DC) and configurable by software

16MHz clock speed
2.5KB SRAM
1KB EEPROM
-20°C to 60°C temperature range
Outputs:
- 8x digitals isolated outputs (5V to 24V V_DC)
- (5x) of 8x, analog (0 to 10V V_DC) outputs. and configurable by switch

Industrial Shields Spartan Arduino PLC

Features

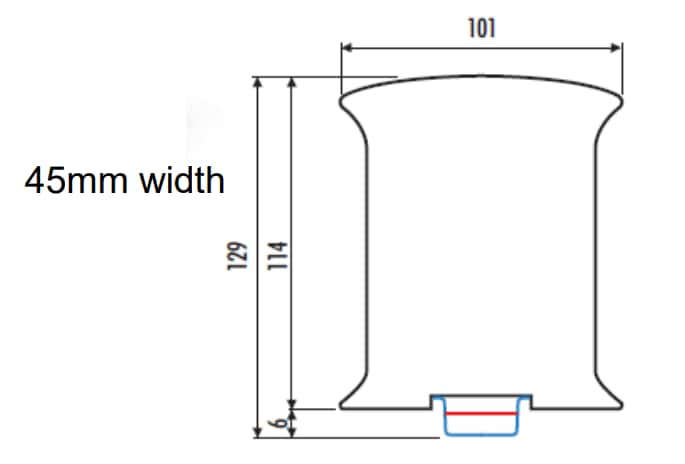

Dimensions Diagram
