Honeywell GAPS General Aerospace Proximity Sensors

Honeywell GAPS General Aerospace Proximity Sensors are configurable, non-contact, hermetically sealed devices designed to sense the presence or absence of a target. Honeywell GAPS sensors provide on/off outputs and can be configured with an optional health monitoring output to the host system. Enhanced vibration / electromagnetic interference (EMI) specifications and hermetic sealing increase flight hours while reducing the need for system maintenance.

Features

  • Non-contact design eliminates mechanical failures
  • Enhanced vibration and electromagnetic interference (EMI) specs help increase flight hours
  • Hermetically sealed with installation base
  • Reduces installation and maintenance costs

Applications

  • Aerospace
    • Landing gear
    • Thrust reversers
    • Flight controls
  • Medical
  • Transportation
  • Automotive

Specifications

  • 500,000 flight hours mean time between failures (MTBF)
  • -55°C to +115°C operating temperature range
  • 20G vibration
  • 40G operating shock
  • 150mA Level W radio frequency conducted susceptibility
  • 100V/m CAT F radio frequency radiated susceptibility
  • Level 3 lightning induced transient susceptibility
  • ON/OFF 20mA output type
  • 1000VDC / 750VAC dielectric strength

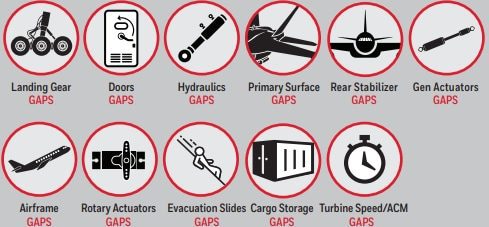

Application Infographic

Chart - Honeywell GAPS General Aerospace Proximity Sensors
