Hirose Electric ZE064W Small Waterproof Automotive Connectors

Hirose Electric ZE064W connectors are a line of small, waterproof connectors for use in automotive and industrial applications. These connectors feature IP67/IP69K ratings when mated, mating keys to prevent mismating, and a retainer for increased contact reliability. Vibration resistance and contact reliability is improved drastically through the use of a dual-layer spring, and a 3-point contact design. Hirose Electric ZE064W connectors are suitable for harsh environments, such as industrial and automotive applications.

Features

Double-layer spring design with 3-point contact
Heat resistance up to +125°C for engine room temperature coverage
Mating keys
Connection retainer

Small size
Withstands continuous vibration during engine operation and driving
IP67/IP69K water resistance when mated

Applications

Automotive
- Automotive ECUs
- Inverters
- DC/DC converters
- Battery packs

Industrial, agriculture, and construction equipment
Harsh environments

Specifications

60V_AC/DC Rated voltage
5A (mono-pole)/2A (24 pos.) Rated current
-40°C to +125°C Operating temperature
1000V_AC Withstanding voltage for 1 minimum
100N Minimum lock strength

8mΩ Maximum contact resistance
100MΩ Minimum insulation resistance
30 Times mating durability
22AWG to 20AWG, ø1.4mm to ø1.7mm Wire diameter applicable cable

Hirose Electric ZE064W Small Waterproof Automotive Connectors

Features

Applications

Specifications

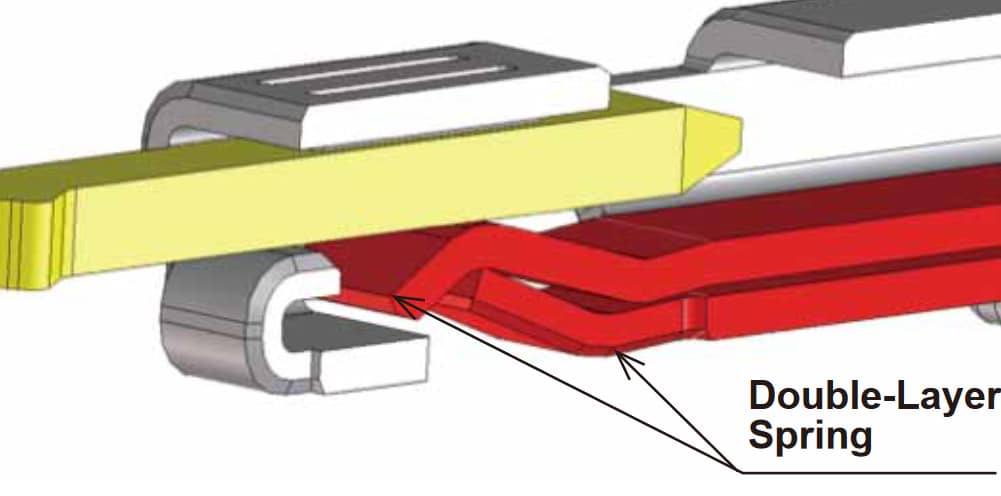

Double-Layer Spring Design

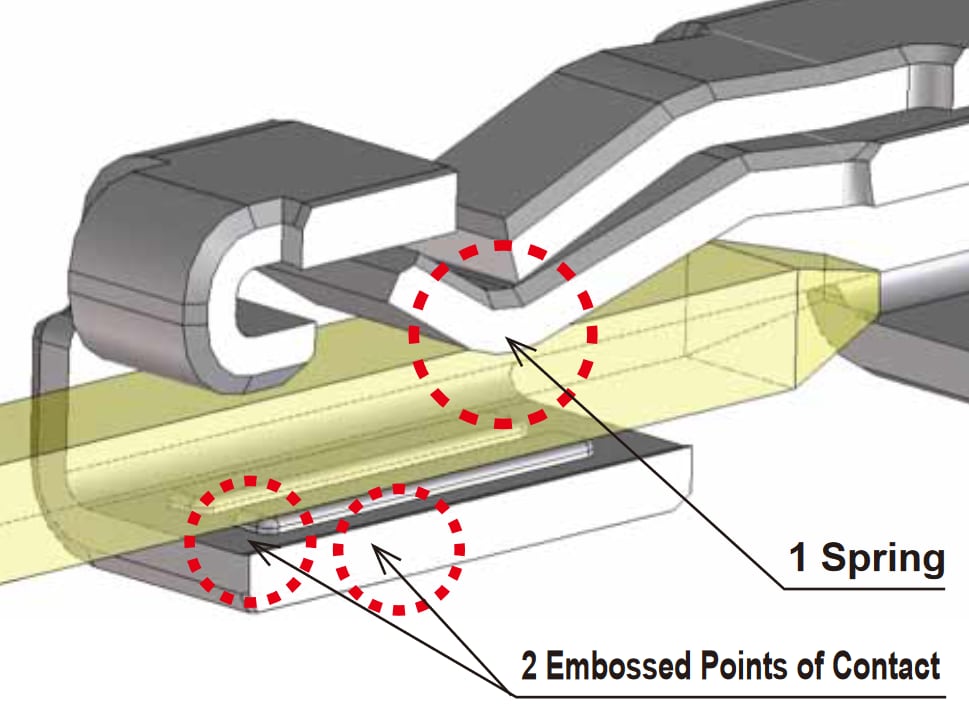

3-Point Contact Design

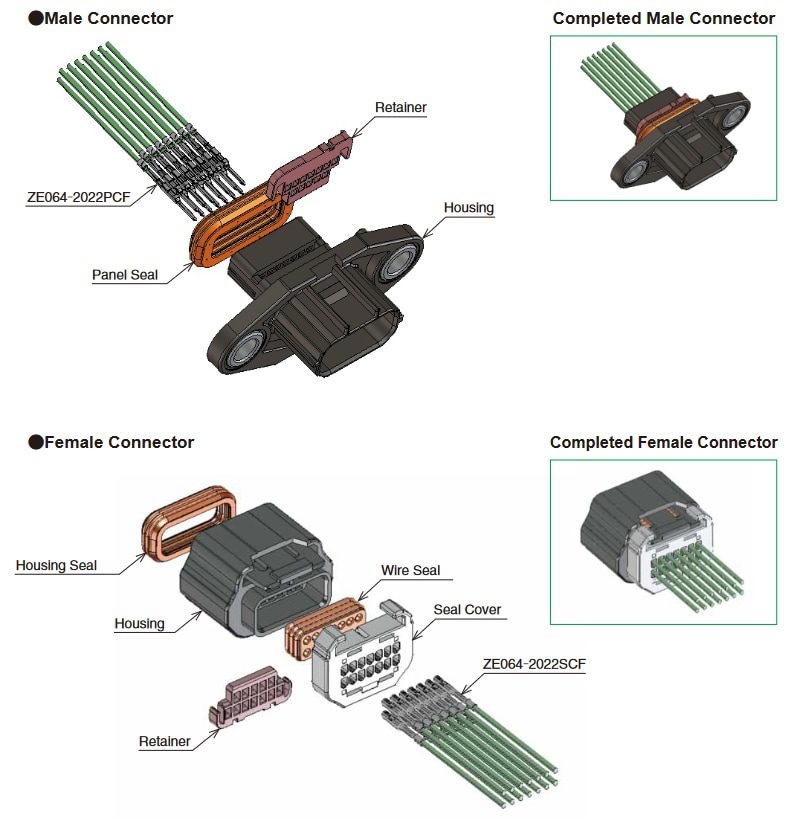

Connector Assemblies
