Hirose Electric TF43SW Power & Signal Hybrid FFC & FPC Connectors

Hirose Electric TF43SW Power and Signal Hybrid FFC and FPC Connectors feature a power contact rating of 12A (6A/pos.) and a 0.5A signal contact capacity. The Hirose Electric TF43SW features a power transmission and reliable signal integrity in a space-saving design. The connectors provide performance in a compact form factor without compromising on current capacity.

Features

Power and signal hybrid FPC/FFC connector suitable for power line connection
- 12A (6A/pos.) power contact
- 0.5A signal contact

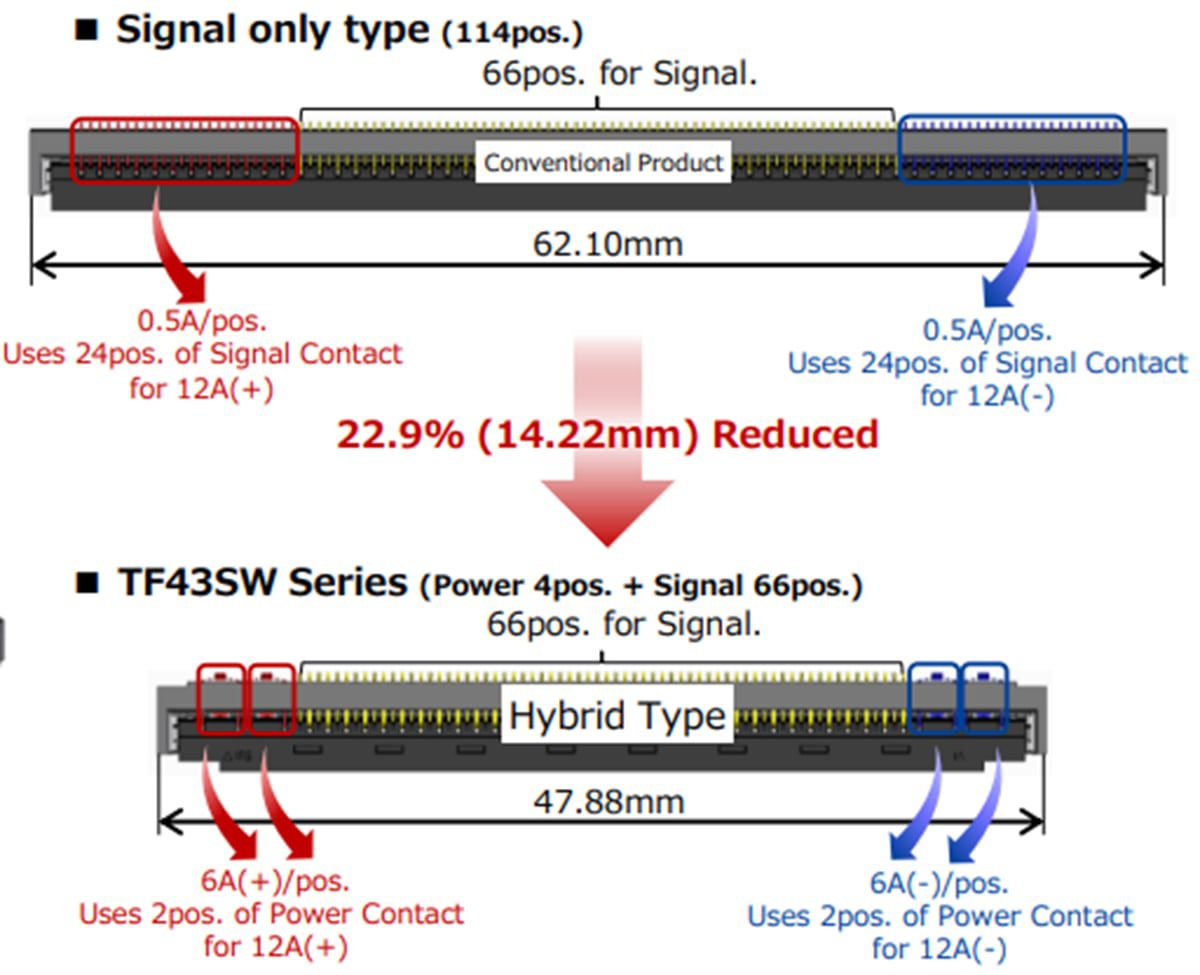

Space-saving compared to products with the same permissible current

Prevents actuator separation and unintended actuator opening
Enhanced contact reliability by 2-point contact design
Solder wicking prevention by nickel barrier plating
Suitable for FPC/FFC with a standard thickness of 0.3±0.03mm

Specifications

0.5mm mounting pitch
47.88mm connector length
1.2mm connector height
4.84mm connector width
Bottom contact orientation
ZIF/Non-ZIF/LIF
Recommended FFC/FPC
Horizontal FPC/FFC insertion direction

Front actuator position
66 number of positions
0.5mm contact pitch
85℃ operating temperature max.
-40℃ operating temperature min.
AC 50.0V rated voltage (AC)
DC 50.0V rated voltage (DC)
6.0A rated current

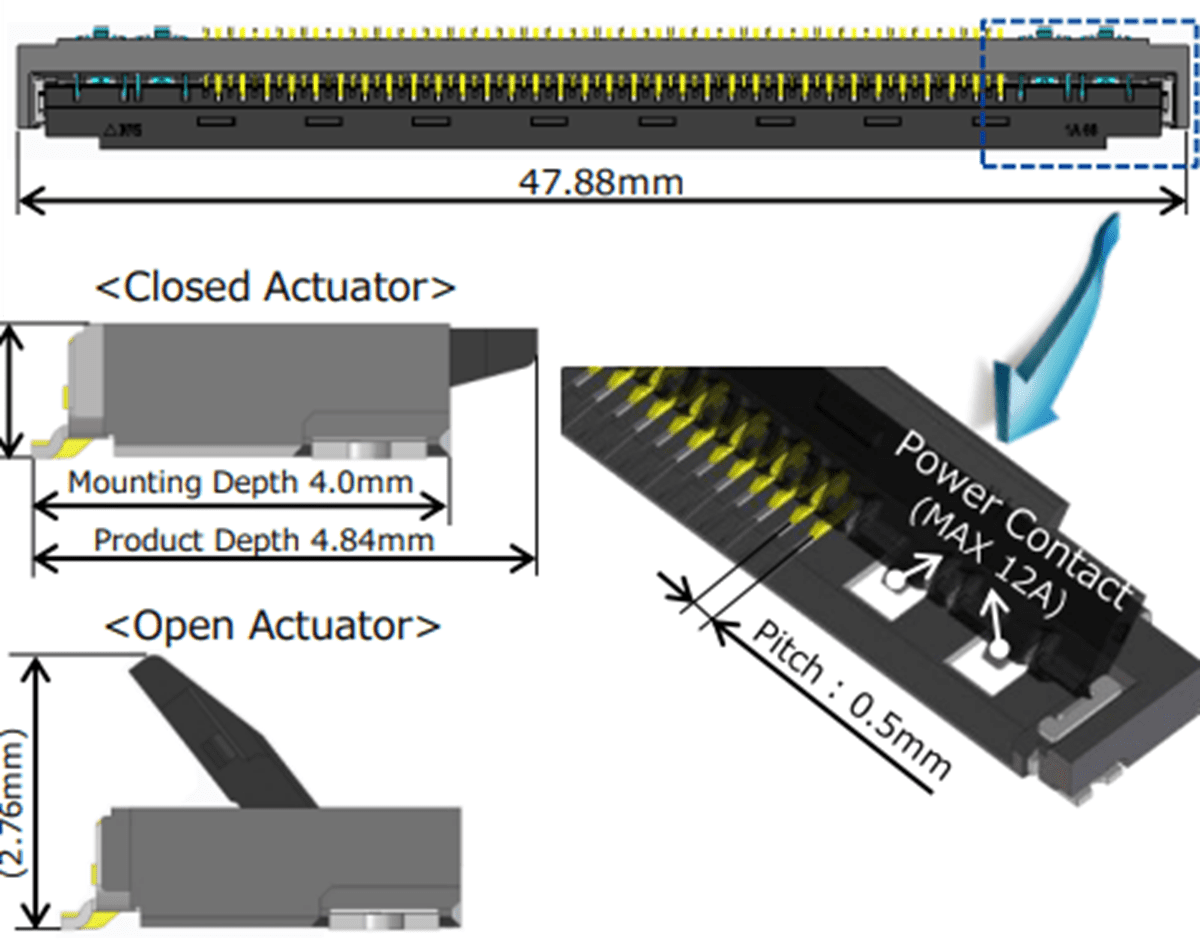

Dimensions
