Hirose Electric FH72 0.3mm High FPC Retention Force Connectors

Hirose Electric FH72 0.3mm High FPC Retention Force Connectors feature a space-saving design with a 0.3mm pitch, 3.5mm width, and 0.9mm height. Hirose FH72 Connectors provide an automatic one-action lock design. The lock design allows the user to insert the FPC after mounting, which contributes to enhanced workability. The series offers a high FPC retention force and a 30.0V_AC/DC rated voltage.

Features

Space-saving design with a 0.3mm pitch, 3.5mm width, and 0.9mm height
Automatic one-action lock design
- One-action locking by inserting FPC after mounting contributes to enhanced workability (lock release by operating the lock lever when removing)
- Operation of the actuator is not required at the time of FPC mating
- Can be inserted with one hand
- Contributes to assembly time reduction
- Lock lever will not be damaged by operation
- Eliminates failures due to FPC movement during locking

High FPC retention force
Notches on both sides of FPC are held by the lock lever, generating a high FPC retention force despite the small size
Easy FPC insertion
Compatible with 0.2mm thickness FPC
Detects FPC Mis-mating with the original structure
Halogen-free

Specifications

0.3mm contact pitch
0.6mm mounting pitch
Rated voltage
- 30.0V_AC
- 30.0V_DC

0.2A rated current
2 rows (lead/PCB side)
11 positions
-55°C to +85°C operating temperature range

Hirose Electric FH72 0.3mm High FPC Retention Force Connectors

Features

Specifications

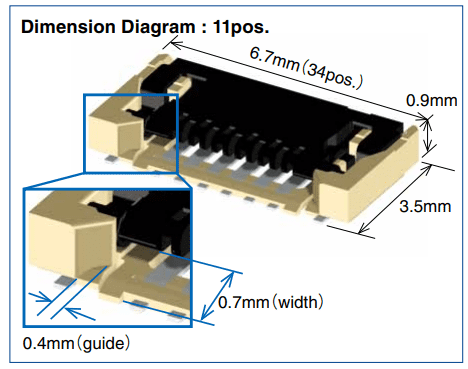

Dimension Diagram
