Hirose Electric DF40T Automotive Board-to-FPC Connectors

Hirose Electric DF40T Automotive Board-to-FPC Connectors are 0.4mm pitch connectors with +125°C heat resistance for automotive specifications. Hirose DF40T Connectors are small (3.38mm depth) FPC-to-board devices with a wide variety of positions and heights. The series is PCI Express 4.0 (16Gbps) compliant and offers a 0.3A rated current and 30V_AC rated voltage.

Features

+125°C Heat resistance for automotive specifications
0.4mm Pitch, 3.38mm depth, small FPC-to-board connector
Wide position and height varieties

PCI Express 4.0 (16Gbps) compliant
Optimized contact design and material for high heat resistance

Specifications

0.3A Rated current
30V_AC Rated voltage

-55°C to +125°C Operating temperature
100V_AC for 1 Minute, withstanding voltage

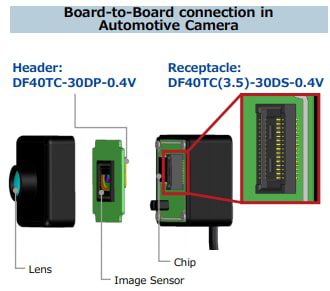

Application Example

Application Circuit Diagram - Hirose Electric DF40T Automotive Board-to-FPC Connectors
