Hartland Controls / Littelfuse HCK Motor Run Capacitors

Hartland Controls / Littelfuse HCK Motor Run Capacitors feature a round or oval case, aluminum oil-filled construction, and single- or dual-rated values. These start capacitors boost the current or reduce the power factor to an electrical motor. The series is designed and manufactured in accordance with UL 810 and EIA standard RS-456 as well as in-house tested and validated. Hartland Controls / Littelfuse HCK Motor Run Capacitors offer 370V_AC and 440V_AC rated voltage as standard, 0.1% maximum dissipation factor, and 30µA maximum leakage current. The capacitors provide a 22,000-hour typical operating life with 94% survival. Common applications include HVACs, pools and spas, motors, food and beverage, and electronics.

Features

Single- and dual-rated values
Round or oval case options
Aluminum oil-filled construction
Designed and manufactured in accordance with UL 810 and EIA standard RS-456

In-house tested and validated
Thick, seven-micrometer film for greater reliability and quality
Vacuum sealed to eliminate leaks and/or contaminates
1.5 mm plastic cup to support mylar film

Applications

HVACs
Pools and spas
Motors

Food and beverage
Electronics

Specifications

370V_AC and 440V_AC rated voltage as standard
0.1% max. dissipation factor
0.1% max. internal protection (UL-recognized internal protection bridge capable of interrupting amps up to 10K)
3% capacitance tolerance available

30µA max. leakage current
50Hz/60Hz frequency
22,000-hour typical operating life with 94% survival
-40°C to +70°C operating temperature range

Hartland Controls / Littelfuse HCK Motor Run Capacitors

Features

Applications

Specifications

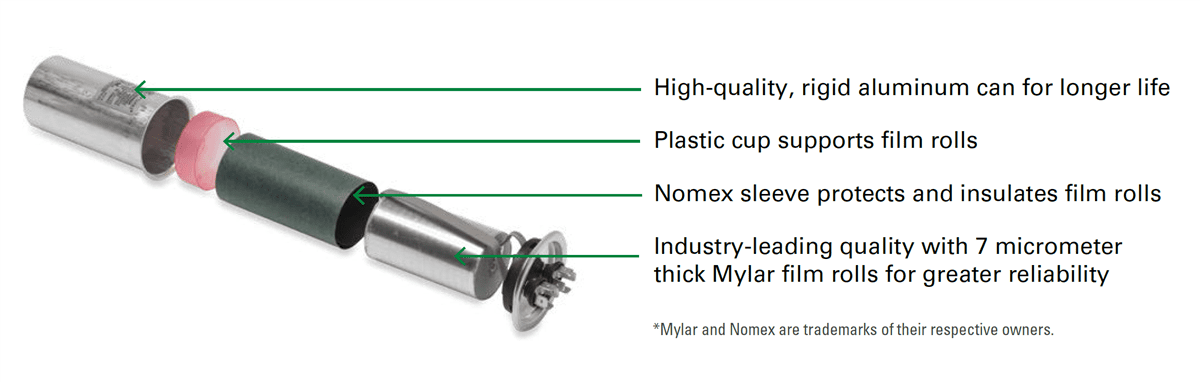

Capacitor Advantage
