Guerrilla RF GRF5613 3.5W Power Amplifier

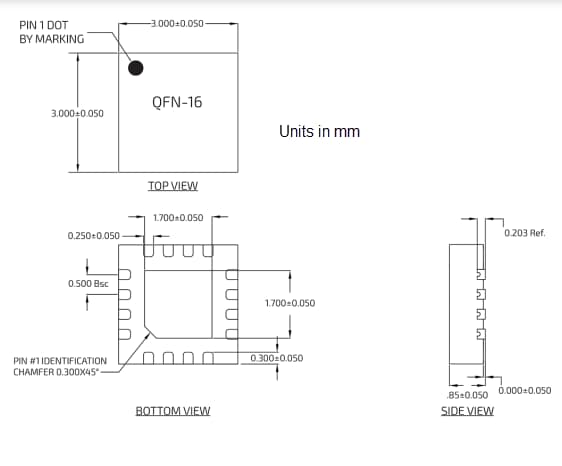

Guerrilla RF GRF5613 3.5W Power Amplifier features flexible biasing latitude for linearity optimization and digital shutdown. This amplifier is a high gain, 2-stage InGaP HBT power amplifier designed to deliver 35.4dBm output power at P1dB over the 1350MHz to 1450MHz band. The RF GRF5613 3.5W power amplifier offers a rugged design that is highly resilient to mismatched loads. This amplifier provides a compact 3mm x 3mm QFN-16 package and is RoHS compliant. The RF GRF5613 3.5W power amplifier operates at -40°C to 85°C temperature range, 5V supply voltage, and 50Ω single-ended input and output impedances. This amplifier is ideally used in customer-premise equipment, military radio, and drones.
