Greenliant GLS88ETx ArmourDrive™ Solid State Drives

Greenliant GLS88ETx Solid State Drives are high-performance, high-reliability drives with NVMe M.2 2230 form factor. These SSDs combine 256GB or 512GB, or 1TB of NAND flash memory with an advanced NVMe PCIe controller on a Printed Circuit Board (PCB). The NVMe PCIe SSD controller with built-in advanced NAND management firmware communicates with the host through the standard PCIe interface. This NAND management technology of M.2 ArmourDrive™ improves endurance and data security and helps prevent data corruption during unexpected power failures. The GLS88ETx SSDs feature power management, reliability, data protection, and IO queuing. These SSDs operate at a 3.3V power supply and a 0°C to 70°C temperature range. The GLS88ETx SSDs are ideally used in industrial and cloud computing, enterprise storage and networking systems, gaming machines, and broadcasting equipment.

Features

  • Industry-standard PCIe host interface:
    • PCIe Gen4x4
    • PCI express base revision 3.1 compliant
    • NVMe 1.4 compliant
  • Supports SMART and TRIM commands
  • 32-bit addressing mode
  • 512 byte/4KB sector size support
  • Reliability of 1.5 million hours Mean Time Between Failures (MTBF)
  • Data protection:
    • End-to-end data path protection
    • Secure erase/data sanitization
    • Supports TCG pyrite
  • Host Memory Buffer (HMB)
  • 128 IO queues supported
  • Built-in ECC
  • RoHS compliant

Specifications

  • 3.3V power supply
  • Power consumption:
    • Active mode:
      • < 4700mW 1TB
      • < 4800mW 512GB
      • < 4500mW 256GB
    • < 40mW idle mode
    • < 5mW L1.2 mode
  • M.2 2230 form factor:
    • 22mm x 30mm x 2.23mm (max)
  • Up to 3,600MB/s sequential data read
  • Up to 2,400MB/s sequential data write
  • 0°C to 70°C operating temperature range


Applications

  • Industrial and cloud computing
  • Data centers
  • High performance enterprise storage
  • Networking systems
  • Endpoint and thin clients
  • Gaming machines
  • Broadcasting equipment

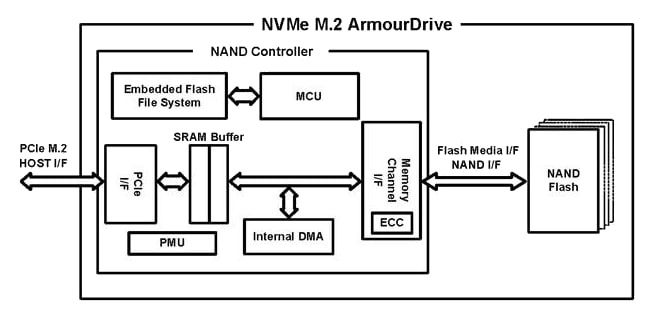

Block Diagram

Block Diagram - Greenliant GLS88ETx ArmourDrive™ Solid State Drives

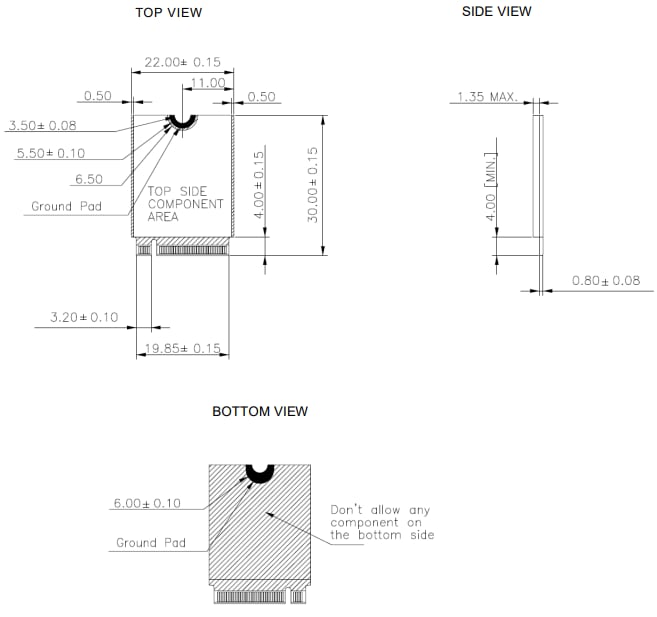

Dimension Diagram (mm)

Mechanical Drawing - Greenliant GLS88ETx ArmourDrive™ Solid State Drives
