Greenliant ArmourDrive™ Industrial Memory Cards

Greenliant ArmourDrive™ Industrial Memory Cards are built with advanced 3-bit-per-cell (TLC/PX series) and 1-bit-per-cell (SLC, EX series) NAND. These memory cards are available in industrial (-40°C to +85°C) and wide (-25°C to +85°C) operating temperature ranges. The SD/microSD ArmourDrive’s advanced NAND management technology improves endurance, enhances data security, and helps prevent data loss during unexpected power loss events. These ArmourDrive memory cards are ideal for applications that require hot-swappable, small form factor data storage with high shock resistance. These SD and microSD cards are used in professional video and photo cameras, transportation systems, industrial automation, and medical computing.

Features

30K P/E cycles high endurance (EX series)
3K P/E cycles endurance (PX series)
Supports Secure Digital (SD) and Serial Peripheral Interface (SPI) protocols
Reliable for more than 3x million hours for Mean Time Between Failures (MTBF)
SMART SSD lifespan monitoring support
Uses advanced bit error detection and correction

Capacities
- 8GB, 16GB, 32GB, and 64GB for the EX series
- 32GB, 64GB, 128GB, and 256GB for the PX series
Form factors
- 32mm x 24mm x 2.1mm SD card
- 15mm x 11mm x 1mm microSD card
RoHS compliant

Specifications

Power consumption:
- <400mA active mode
- <1mA standby mode
±4KV ESD protection

-40°C to 85°C industrial and -25°C to 85°C wide operating temperature ranges
3.3V operating supply voltage

Greenliant ArmourDrive™ Industrial Memory Cards

Features

Specifications

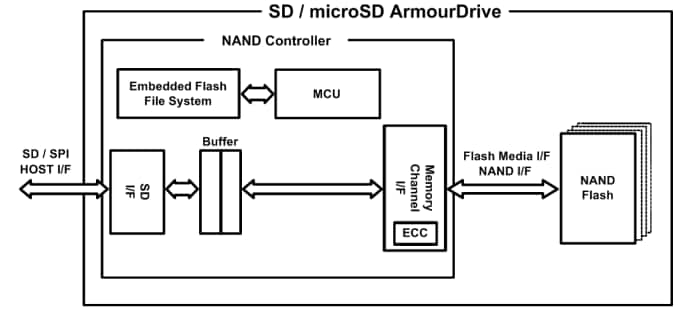

Functional Block Diagram
