GOWIN DK-START-GW1N9 Development Kit

GOWIN Semiconductor DK-START-GW1N9 Development Kit facilitates the evaluation of the GW1N-LV9 LQ144 LittleBee^® GW1N-9 FPGAs. The Development Board has a wide range of advanced features, including low power consumption, instant start-up, high security, low-cost, and flexible extensions. These features effectively reduce learning costs and help users quickly design and develop programmable logic devices.

The GOWIN DK-START-GW1N9 Development Kit offers two GPIO ports and two LVDS ports. It provides users with a hardware evaluation and testing platform that presents a high integration level and stable performance, via flexible V_CCO regulation (3.3V, 2.5V, and 1.2V).

The Development Board can be used as the mainboard to design an image-sampling system and the other related systems by combining video daughter boards using the many GPIO resources. Motion control systems can also be created by combining the development board with AD/DA industrial daughter boards. Simultaneously, the human-computer interface and image processing can be achieved by combining the development board with the display daughter board.

Features

FPGA
- LQFP144 package
- Embedded flash, data not easily lost if power down
- Abundant LUT4 resources
- Multiple modes and capacities of B-SRAM
- Supports LV
FPGA Configuration mode
- JTAG, AUTO BOOT, MSPI
Clock Resources
- 50MHz clock crystal oscillator
- SMA external clock input
Key switch and slide switch
- One reset button
- Four key switches
- Four slide switches

LED
- One power indicator (green)
- One DONE indicator (green)
- Four LEDs (green)
Memory
- One 64Mbit SPI flash
GPIO
- 72 I/O Resources
LDO Power
- Inverse voltage protection, overcurrent protection
- Supports 3.3V, 2.5V, and 1.2V

Kit Contents

Gowin DK-START-GW1N9
5V power adapter (220V input, DC 5V 2A output)

USB cable
Quick start user guide

GOWIN DK-START-GW1N9 Development Kit

Features

Kit Contents

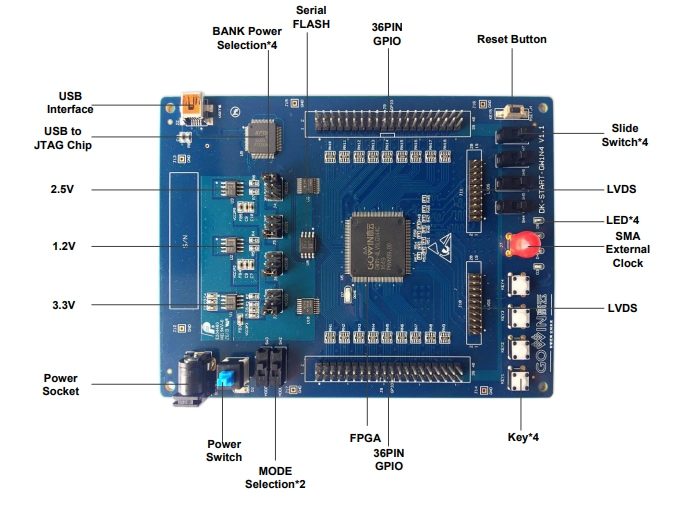

PCB Components Diagram

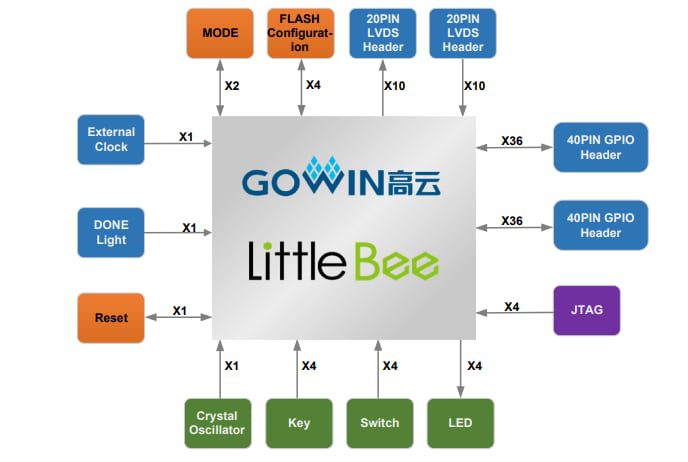

System Architecture
