Global Specialties PB-50xA Circuit Design Trainer Educational Kits

Global Specialties PB-50xA Circuit Design Trainer Educational Kits enable hands-on lab experience by employing necessary breadboarding techniques which provide a solid foundation in circuit experimentation, analyzing, and troubleshooting. These kits are suitable for all levels of electronics instruction and design. These devices construct basic series and parallel circuits up to the most complicated multi-stage microcomputer circuits incorporated in industrial technology.

Features

Ideal for analog, digital, and microprocessor circuits
Includes built-in digital function generator with continuously variable waveforms
Triple output power supply for a variety of DC voltage levels
Two digital pulsers for logic test circuits
High and low buffered logic indicators
Logic probe (PB-505A only)
AC output (PB-505A only)
2x BCD-to-LED display circuits (PB-505A only)

8-channel logic monitor
Audio experimentation speaker
Removable breadboard plate allows the flexibility of building circuits away from the lab
Analog and digital optional courseware available
Input power source, AC line switchable between:
- 110V_AC to 120V_AC at 60Hz
- 210V_AC to 230V_AC at 50Hz
3-year warranty

Applications

Circuits:
- Opto-device
- Oscillator
- Function generator
- Logic
- Medium-scale integration
Clocks
Multivibrators

Timers
Gates
Counters
Flip-flops
Analog-to-digital converters
Digital-to-analog converters
Phase lock loops
Operational amplifier

Global Specialties PB-50xA Circuit Design Trainer Educational Kits

Features

Applications

PB-503A Panel Views

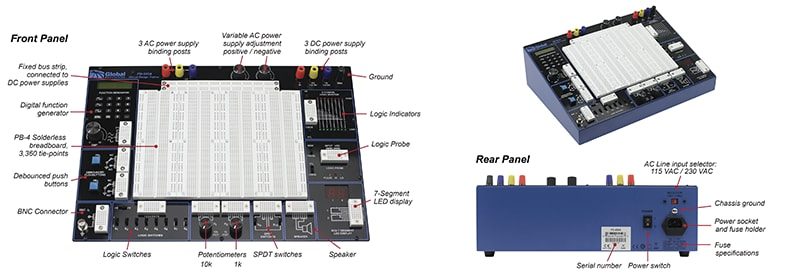

PB-505A Panel Views
