GCT (Global Connector Technology) USB 3.0 Type C Connectors

GCT USB 3.0 Type C Connectors are robust and compact I/O interconnect systems that offer a variety of new functionality and features for USB connectivity. This includes a reversible mating form factor and elevated levels of performance when it comes to power delivery and data transfer speeds. These connectors are capable of handling power up to 5A, fast 20Gbit/s (USB3.2) data transfer rates, and up to 10,000 mating cycles. This is a significant improvement to a much higher level of power management, up to 100 watts to deliver fast charging. The USB 3.0 Type C connectors successfully pass the stringent temperature rise specifications required for USB Power Delivery because of the high-grade contact material products used.

Features

Robust and compact I/O interconnect system
Reversible mating form factor and elevated levels of best in class performance
Up to 20Gbit/s directional control and up to 5A power level management
Up to 10,000 mating cycles

Deliver Up to 100 watts fast charging
Horizontal top and mid-mount types are available in SMT and hybrid
- Mix of twelve thru-hole and twelve SMT contacts
Tested to the stringent temperature rise specifications required for USB power delivery

GCT (Global Connector Technology) USB 3.0 Type C Connectors

Features

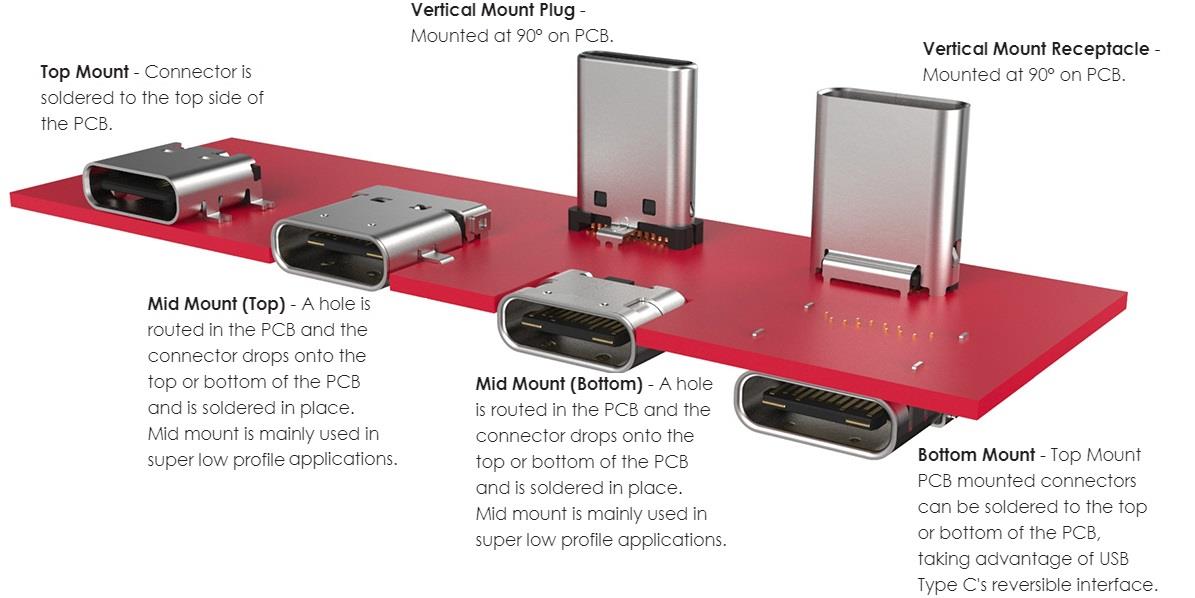

USB Type-C PCB Orientations & Mounting Types
