GCT (Global Connector Technology) 240W-rated 16-Pin/24-Pin USB Type-C™ Connectors

GCT (Global Connector Technology) 240W-rated 16-Pin/24-Pin USB Type-C™ Connectors meet USB2.0 and USB3.1 Gen2 specifications. These connectors include horizontal and vertical mount variants and support 20,000 mating cycles, which provides increased reliability. The horizontal versions are available in multiple shell stake options to maximize PCB retention for standard PCB thicknesses. The 240W-rated connectors are ideal for Power Delivery (PD) applications.

Features

240W (48V @5A) rated for Power Delivery (PD) applications
All 240W products are tested and approved for 20,000 mating cycles (2x industry standard)
Horizontal and vertical mount versions
Vertical options are available in 0.70mm, 1.70mm, and 2.30mm shell stake lengths

Horizontal options are available in SMT, 0.60mm, 0.95mm, 1.20mm, and 1.60mm shell stake lengths
16-pin (USB2.0 applications) and 24-pin (USB3.1 Gen2 applications) options

GCT (Global Connector Technology) 240W-rated 16-Pin/24-Pin USB Type-C™ Connectors

Features

Videos

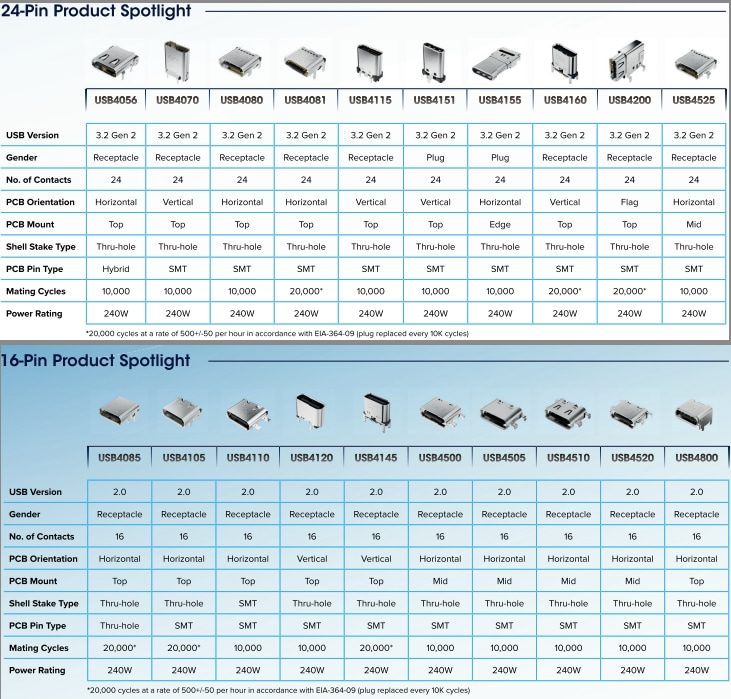

USB4xxx Comparison Chart
