Future Designs, Inc. (FDI) ELI70-CP 7.0″ PCAP Touch Screen LCD Module

Future Designs, Inc. (FDI) ELI70-CP 7.0″ PCAP Touch Screen LCD Module has an Easy LCD Interface (ELI) that offers a simple plug and play display solution for Single Board Computers (SBC) such as the popular Raspberry Pi or BeagleBone Black. ELI devices are also compatible with NXP i.MX6 single board computers. ELI only needs an HDMI video input, a 12VDC power supply, and a USB interface for the touch screen.

The FDI ELI70-CP 7.0″ PCAP Touch Screen LCD Module provides an off-the-shelf solution with no NRE or development costs.

Features

  • Easy LCD interface (ELI)
  • 7.0″ PCAP screen LCD with USB device interface
  • 380nits Brightness and 800:1 contrast ratio (typical)
  • 1024 by 600 (WSVGA)
  • 0.7mm Steel glass cover
  • >6H Touch panel hardness
  • -20° to +70° C Operating temperature range
  • Plug and Play interface to standard SBCs
  • HDMI or DVI Input with EDID support
  • +5.0 to 24.0 Volt DC input power (±5% tolerance)

Required Equipment

  • HDMI Cable (Type A Male) to connect to the ELI for the video signal
  • USB Cable (Mini USB Type B) to connect to the ELI for the touch screen operation
  • 12V DC power input, 2.1mm, center positive, 1.2A min
  • Either computer, SBC, or PC, with digital video output (HDMI or DVI) and USB port for touch input

Specifications

  • 7.0″ (diagonal) screen size
  • a-Si TFT active matrix LCD display technology
  • 1024 x 600 (WSVGA) resolution
  • 380cd/m2 (typ) brightness
  • 800:1 (typ) contrast ratio
  • Wide 16:9 aspect ratio
  • HDMI / DVI interface input mode
  • 16.7M (24 bit) colors
  • 80°L/R horizontal viewing angle
  • 60°U/70°D vertical viewing angle
  • 0.7mm steel glass cover surface
  • Projected capacitive (PCAP) touch screen
  • USB device touch screen interface
  • >6H touch panel hardness
  • 120gF (max) touch panel force
  • 154.21mm (W) x 85.92mm (H) Active area
  • 30ms (typ) response time
  • 27 LED (3S x 9P) backlight
  • 30K hours (typ) backlight life
  • -20°C to 70°C operating temperature
  • -30°C to 80°C storage temperature
  • +5.0 to +24.0VDC +/- 5% input voltage
  • 350mA (typ) / 550mA (max) @ 12V power consumption
  • Backlight power consumption up to 53% of total
  • RoHS compliant
  • 193.04mm (W) x 100.97mm (H) x 18.55mm (D)
  • #8 screw mounts in 4 corners
  • 250 grams weight

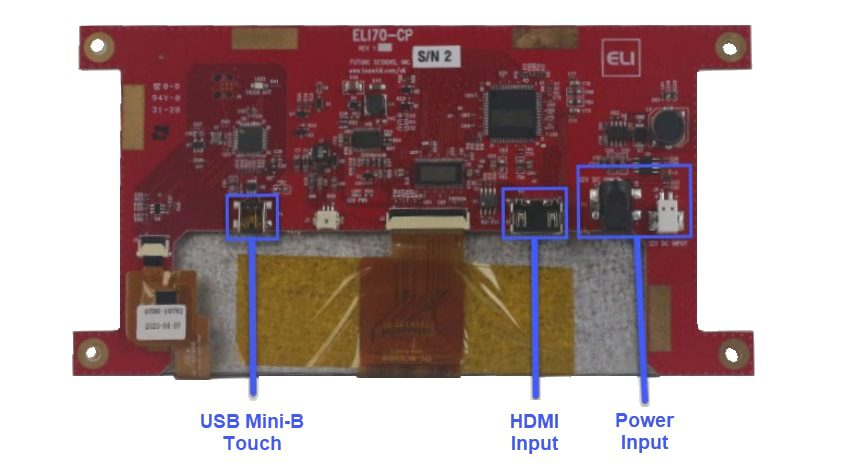

Connections
