Futaba LC070HA TFT-LCD Module

Futaba LC070HA TFT-LCD Module is a touch controllable display module designed for embedded applications connected to a personal computer with Windows 10. The LC070HA touch panel (single touch) interface supports the Windows standard driver USB-HID class. The LC070HA TFT-LCD Module offers a wide operating temperature range and high reliability, ideal for industrial applications.

Features

Expansion of the display is possible only with a USB
Available as a main display as well
Driving is possible with bus power (USB 3.0)
The touch panel (single touch) interface supports the Windows standard driver USB-HID class

Display is possible by simply installing the dedicated driver for a graphic IC
Suitable for industrial application due to wide operating temperature range and high reliability

Applications

POS
Measuring instrument
Medical equipment

Guide display
FA machine

Application Diagram

Futaba LC070HA TFT-LCD Module

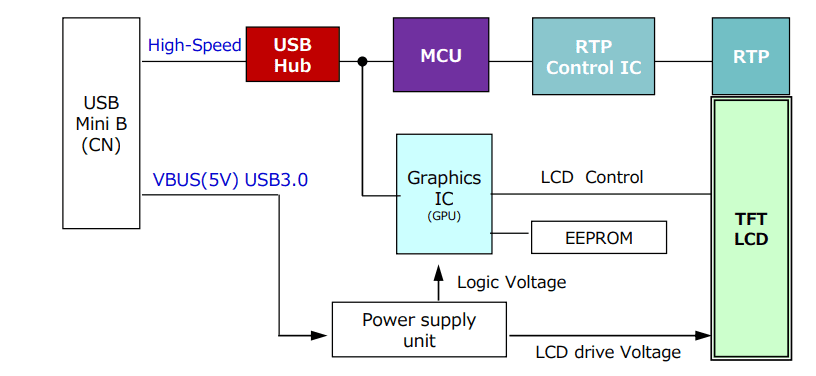

Block Diagram

Block Diagram - Futaba LC070HA TFT-LCD Module
