FTDI Chip USB Hi-Speed FT233HP & FT4233HP Evaluation Modules

FTDI Chip USB Hi-Speed FT233HP and FT4233HP Evaluation Modules are high-speed USB Type-C™ to multipurpose UART/JTAG/SPI/I²C serial interface evaluation modules with two Type-C USB PD ports.

The FTDI Chip FT233HP and FT4233HP Evaluation Modules are 138.5mm x 77mm, integrating a pair of Type-C power delivery ports. The first port can sink (receiving power) and source (providing power) roles, while the second port serves only as a sink. The ports support the 5V, 9V, 12V, 15V, and 20V power delivery object (PDO) profiles – as defined in revision 3.0 of the USB Power Delivery specification. The profiles are configured via an external EEPROM memory, with LED indicators signifying which PDO profile is used.

Features

Two Type-C USB PD ports with,
- PD1 which is an initial sink port that supports power role swap and USB data which is USB 2.0 compliant
- PD2 which is a sink-only port
Supports the self-powered and bus-powered operation
Configurable Jumper options to enable/disable pass-through circuit or voltage-dc regulator
External EEPROM for configurable options

Supports external control of power delivery policy using the on-board I²C and GPIO pins
Configurable jumper options to connect I²C
LED indicators for every GPIO pin and PWREN#, SUSPEND# signals, and system power
Test points for all power supply voltages, core voltages, PD VBUS voltages, and CC voltages

Applications

Rapid USB integration into existing electronic systems
Prototyping platform for USB interface on new system
USB Bridge with Type-C/PD3.0 (chargers and devices)

Up to 60W power application delivery via USB PD and/or Type-C port
USB to multi-port JTAG, SPI, and I²C interfaces
USB to multi-port asynchronous serial interfaces

FTDI Chip USB Hi-Speed FT233HP & FT4233HP Evaluation Modules

Features

Applications

UMFT233HPEV Electrical Details

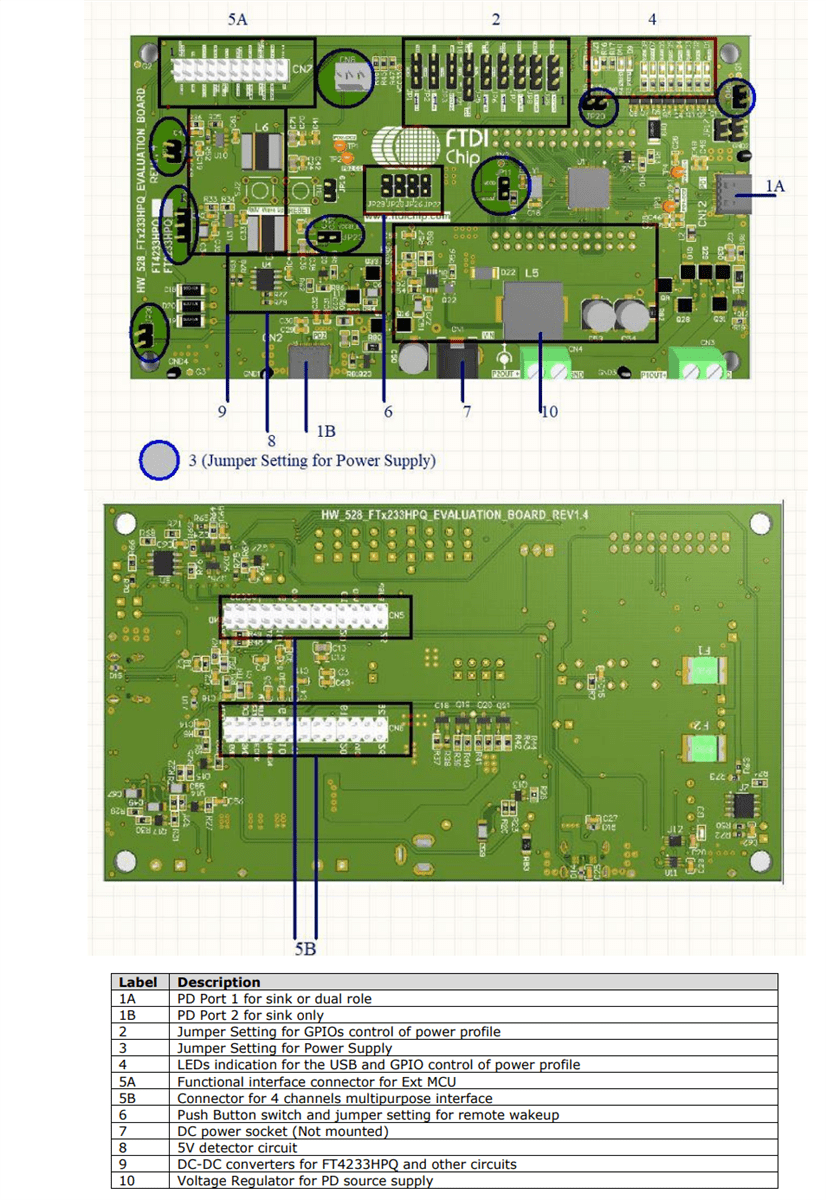

UMFT4233HPEV Electrical Details
