Flex Power Modules PKE3000 DC-DC Converters

Flex Power Modules PKE3000 DC-DC Converters offer a 9V to 36V input voltage range, output up to 7A, and 25.4mm x 25.4mm x 11.4mm dimensions. PKE3000 converters feature numerous protections, including output overvoltage, output short-circuit, and overtemperature. These converters have various characteristics, such as input undervoltage shutdown, output voltage adjust function, monotonic start-up, and remote control. Flex Power Modules PKE3000 DC-DC Converters provide high efficiency of up to 92% and 1500V_DC input to output isolation and are compliant with IEC/UL 62368 standards.

Features

Input undervoltage shutdown
Output voltage adjust function
Monotonic start-up
Remote control

Protections
- Output overvoltage
- Output short-circuit
- Overtemperature

Specifications

9V to 36V input range
Up to 7A/30W output
1500V_DC input to output isolation
High efficiency up to 92%

25.4mm x 25.4mm x 11.4mm dimensions
-40°C to +110°C or +115°C operating temperature range
10µF internal input capacitance
460kHz switching frequency

Flex Power Modules PKE3000 DC-DC Converters

Features

Specifications

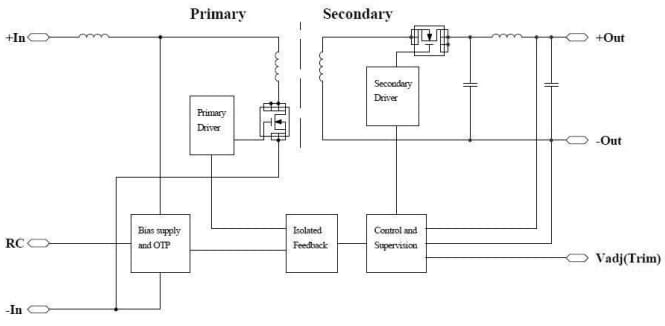

Fundamental Circuit Diagram
