FCT Juwel D-Subminiature Backshells

FCT Juwel D-Subminiature Backshells provide easy cable management by enabling a 45° to straight adjustment of a D-sub connector’s orientation. A click-and-close assembly offers protection and strain relief. The Juwel D-Sub Backshells feature a modern design with a sleek back panel that allows customization and are available in black, red, green, or blue. Applications include commercial aerospace, medical, test/measurement, telecommunications/networking, defense, industrial automation, electrical, and railway transportation.

Features

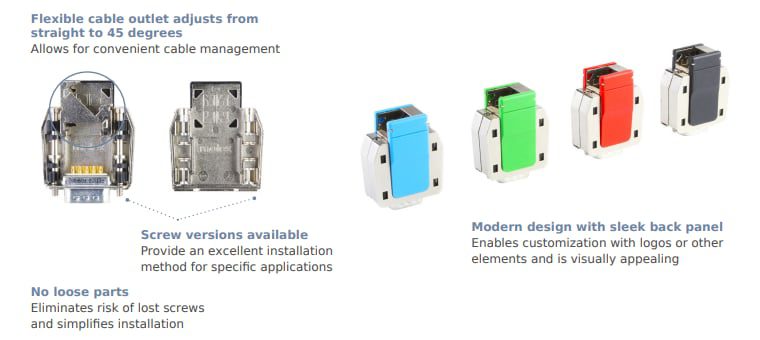

Flexible cable outlet adjust from 45° to straight allowing for convenient cable management
Screw version available for use in specific applications
No loose parts eliminate the risk of lost components and simplify installation
Modern design with sleek back panel enables customization

Click-and-close assembly, protection, and strain relief
Standard locking screw
360° EMI shielding
IP20 rated
UL 94V-0 flammability rating
Low-halogen, RoHS and REACH compliant

Applications

Commercial aerospace (aircraft cabins)
Medical
- MRI testing equipment
- Patient monitoring units
Scientific test and measurement equipment
Telecommunications/networking
- Rack-mounted systems
- Head-end equipment

Defense
- Security devices
- Surveillance equipment
Industrial automation
- Food and beverage equipment
- Drag-chain systems
Electrical wire harnesses
Railway transportation

Specifications

37.00mm x 18.00mm x 43.00mm (LxBxH) in dimension
ø3.00 to ø9.50mm cable size range
-35°C to +100°C operating temperature range

>100N cable pull-out force
Metal (zinc) hood available in black, red, green, or blue
