Fastron 242418FP Non-Shielded SMD Chip Inductors

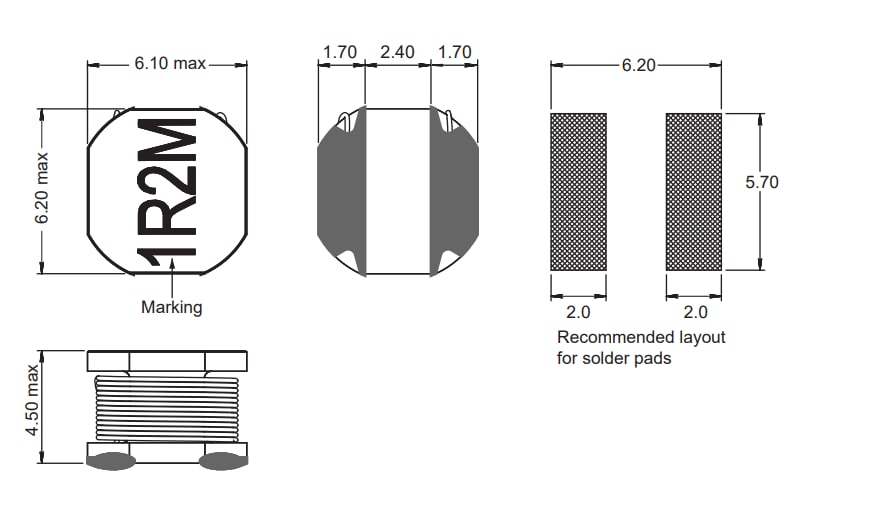

Fastron 242418FP Non-Shielded SMD Chip Inductors are cost-effective non-shielded inductors for power applications. The Fastron 242418FP compact (6.1mm x 6.2mm x 4.5mm) chokes feature a ferrite core and enameled copper wire, providing a high-rated current and low DC resistance (DCR). 242418FP Non-Shielded SMD Chip Inductors offer 5A maximum rated current and an inductance range of 1.2μH up to 1000μH with a tolerance of ±10% or ±20%. The lead-free terminals are pre-tinned for improved solderability. These devices operate over a -40°C to +150°C temperature range, which includes self-heating of the component. 242418FP is ideal for space-constrained filters or power applications, such as AC/DC converters, DC/DC converters, and LED drivers. These inductors serve applications in stationary or battery-powered systems.
