Fanstel BLG840F/X Industrial IoT Gateways

Fanstel BLG840F/X Industrial IoT Gateways are open-source, secure, industrial LTE to BLE 5, Thread, Zigbee gateways. The BLG840F/X Gateways are low cost and long-range (1800 meters at 125Kbps with 60% Fresnel zone clearance). The devices enable the mass deployment of IoT devices.

The PK-BLG840F is used for monitoring traffic data and a 10-pin cable for programming.
The Nordic nRF9160DK, nRF52840DK, and 10-pin cable included in the PK-BLG840F is used to program BLG840F/X firmware.

Features

BLG840F Gateway
- BLG840F integrates a long-range module BT840F with nRF9160 SIP module
- Range between 2 BT840F modules (not in enclosure) is 2300 meters at 125Kbps
- GPS antenna is integrated
- An external LTE antenna is included

BLG840X Gateway
- Using BT840X with +22.9dBm TX, BLG832X can penetrate multiple walls or be used in wide-area mesh applications
- Ranges between 2 BT840X is more than 4500 meters at 125Kbps

Fanstel BLG840F/X Industrial IoT Gateways

Features

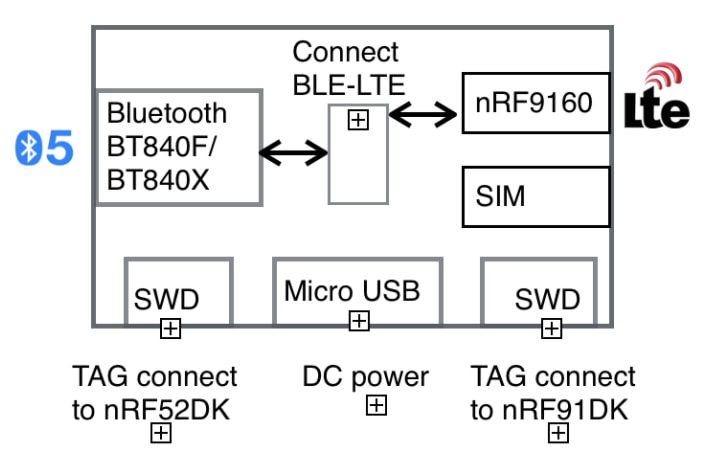

Block Diagram
