Ezurio Sentrius™ IG60-SERIAL-LTE Wireless IoT Gateway

Ezurio Sentrius™ IG60-SERIAL-LTE Wireless IoT Gateway brings industrial wireless and IoT capabilities into one unique solution. Based on the Ezurio 60-Series SoM, the IG60-SERIAL-LTE features serial (RS232/422/485), BLUETOOTH® 4.2, and Wi-Fi® 802.11ac Wave 2 with 2×2 MIMO. The Gemalto Cinterion® PLS62-W wireless module delivers highly efficient multi-band Cat 1 LTE connectivity with seamless fallback to 3G and 2G. Dual-Ethernet and USB are included for additional connectivity and a microSD slot is provided for external storage. Using the IG60-BL654-LTE Wireless IoT Gateway, users can capture data from legacy serial industrial devices, add cloud-managed edge intelligence, and send it to the cloud with Wi-Fi and global LTE Cat 1 wireless connectivity.

The Sentrius IG60-SERIAL-LTE Wireless IoT Gateway is offered in two variants:

Sentrius IG60-SERIAL-LTE with integrated AWS (Amazon Web Services) IoT Greengrass, deployment tools, and managed IoT security services (455-00085)
- Ideal for cloud-native organizations without embedded or wireless expertise
- Securely connect to your AWS cloud in minutes with a mobile app, no coding or compiling required
- Deploy your applications instantly, over-the-air, using AWS IoT Greengrass
- Data flows directly to your cloud via AWS IoT Core
- Gateways in the field receive automatic, over-the-air security updates
- All gateway firmware is secured out-of-box with a hardware root-of-trust
Sentrius IG60-SERIAL-LTE with Ezurio Linux Build and Chain of Trust Security (455-00084)
- Ideal for engineering organizations with embedded experience looking for multi-wireless connectivity
- Develop applications on top of a long-term supported (LTS) Buildroot environment
- Complete set of development tools including precompiled SDK and toolchain, IDE support, and a host communications API
- Annual major releases and bi-annual minor releases for new security updates
- Achieve best-in-class wireless performance using Ezurio’s performance-optimized Wi-Fi supplicant and Bluetooth programming language, smartBasic
- Secure processes for secure boot and ongoing security maintenance via Ezurio’s Chain of Trust Security

Features

Onboard Cortex A5 MPU, 536MHz (Microchip Technology SAMA5D36)
LTE Cat 1 global connectivity with 3G/2G fallback (Gemalto PLS62-W)
802.11ac Wave 2 Wi-Fi 2×2 MIMO
Bluetooth 4.2 (Marvell 88W8997)
1x 10/100 Mbit/s and 1x 10/100/1000 Mbit/s with IEEE 1588
1Mbit Flash and 256k RAM
1x USB 2.0 Host
1x MicroSD slot
2x SMA front-face antenna ports
2x SMA rear-face antenna ports

Industrial -30°C to +60°C operating temperature range
Globally and carrier certified: AT&T, FCC, IC, CE, MIC, CE, UL, IEC62368-1
Long term OS updates, delivered over-the-air (AWS variant) or through Ezurio’s support team (Linux variant)
iOS and Android mobile apps allow connection to your AWS account in minutes with no coding (AWS variant)
Wall mount chassis
Dimensions: 85mm x 22mm x 100mm

Applications

Legacy serial sensing devices
Industrial IoT

Medical IoT
Smart buildings

Kit Contents

Sentrius IG60-SERIAL-LTE with Bluetooth 4.2 and Wi-Fi
4x dipole antennas
2x SIM cards (AT&T and Global)
1x wall mounting bracket
8x screws for mounting bracket
Power supply not included
- View Power Supply Options

Videos

Resources

Product Brief
Connect Bluetooth Sensors to the Amazon Web Services Cloud with AWS IoT Greengrass

Ezurio Sentrius™ IG60-SERIAL-LTE Wireless IoT Gateway

Features

Applications

Kit Contents

Videos

Resources

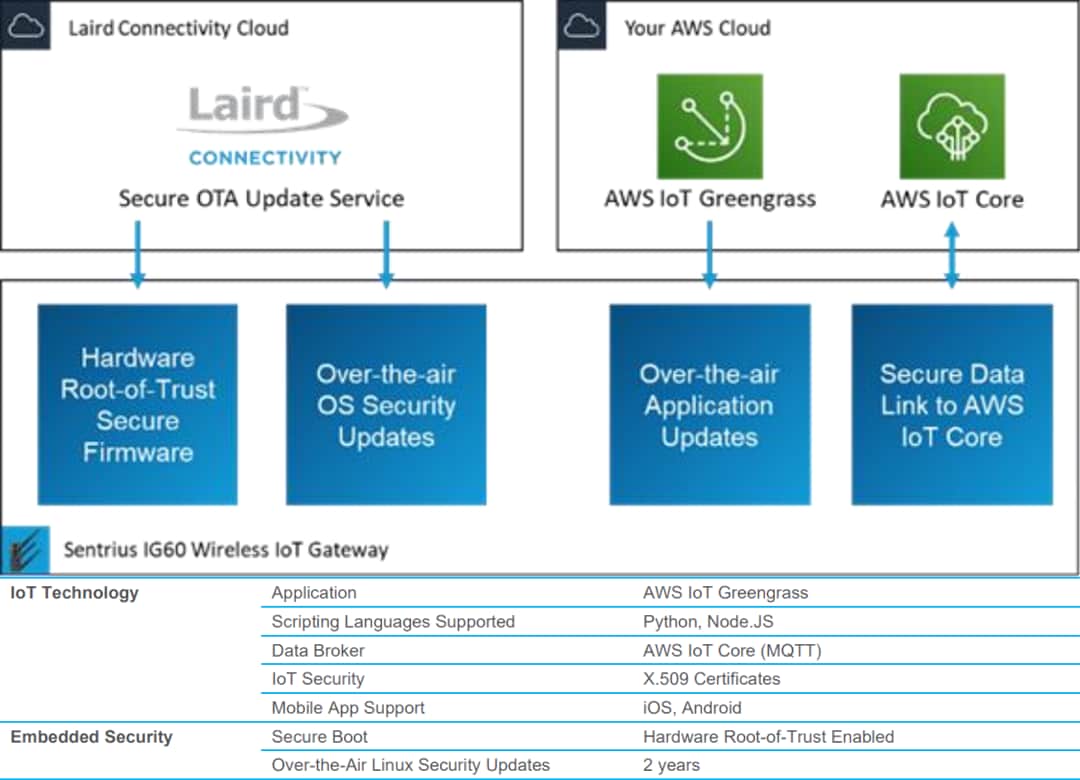

AWS IoT Greengrass Benefits
