Ezurio 868MHz/915MHz i-FlexPIFA™ Antennas

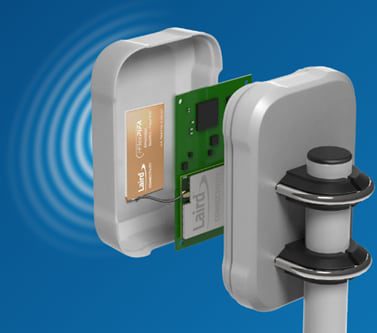

Ezurio 868MHz/915MHz i-FlexPIFA™ Antennas offer rapid integration into space-constrained devices and housings with MHF1 and MHF4L connector options.  These flexible, adhesive-backed antennas are designed with the radiating element facing outward when adhered to a plastic enclosure interior. This orientation provides flexibility and mounting options, such as the underside of an enclosure. The series is ideal for sub-GHz applications like LoRaWAN. These inverted flexible planar F-type antennas deliver consistent performance across the 868MHz and 915MHz ISM bands, ensuring a solid and reliable connection. Additional features include a maximum gain of -0.4 at 815MHz and +0.9 at 915MHz, <2.5:1 voltage standing wave ratio (VSWR), and 40mm x 88mm x 6.2mm dimensions (L x W x H).
